MBS.001006Binocular Compound Biological Microscope
  • /usr/575/images/Products/Y/57517816.jpg
  • /usr/575/Picture/Y/10889.jpg
  • /usr/575/Picture/Y/10890.jpg
  • /usr/575/Picture/Y/10891.jpg

MBS.001006 series biological microscopes are equipped with achromatic objectives and wide field eyepieces. They have clear image and wide view field. They can be used for biology, medicine, and agriculture and industry area widely. They are the ideal instruments in medical treatment, teaching demonstration and scientific research.

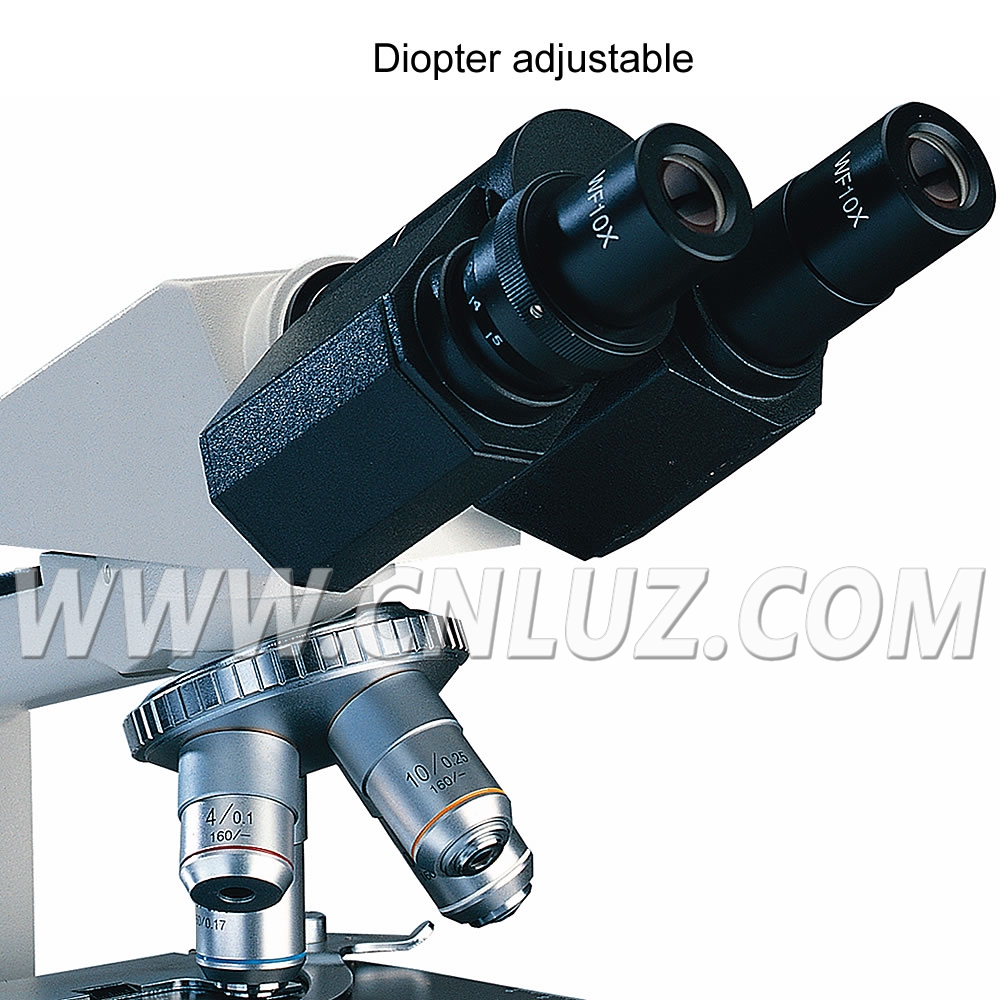

  •  With wide field eyepieces and achromatic objectives, the field of view is widely and clear

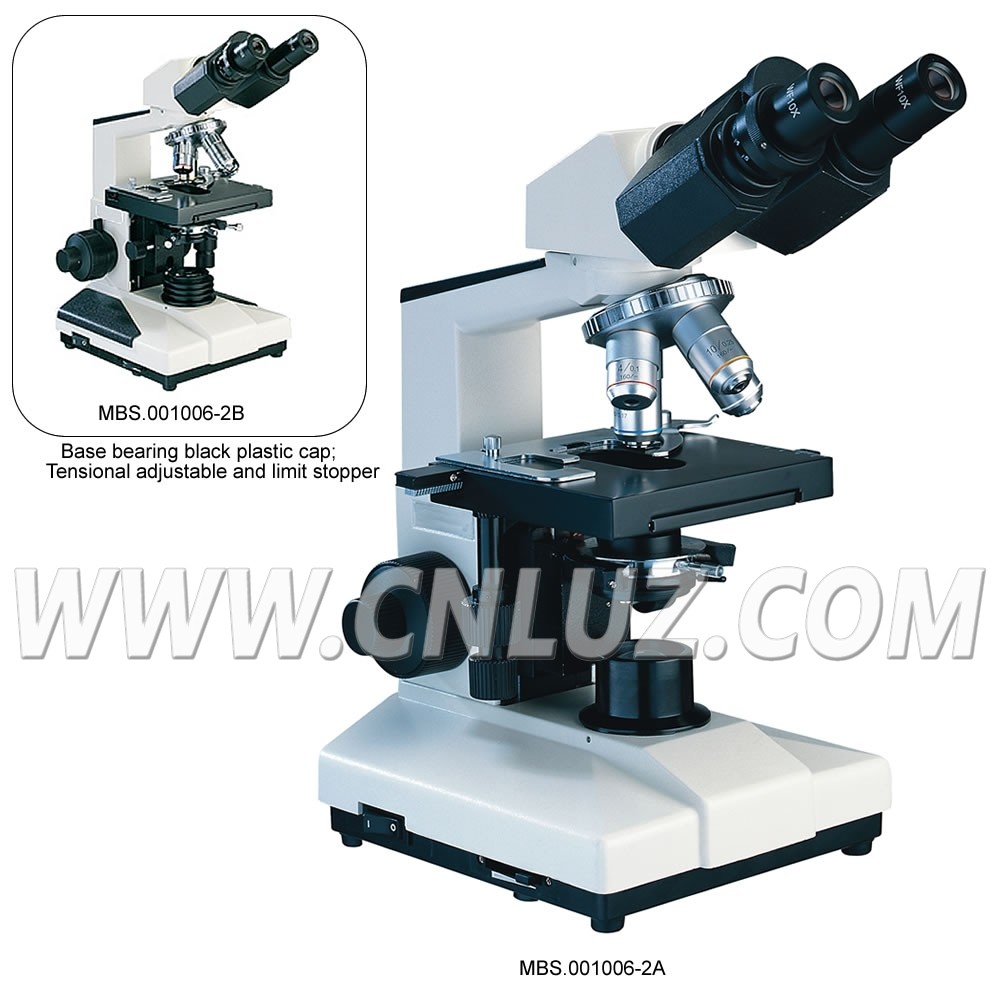

  •  MBS.001006-2A:Coaxial coarse/fine focus system;
  •  MBS.001006-2B:Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum divisionof fine focusing: 2μm
  •  6Volt 20Watt Halogen lamp with brightness control
Specification
MBS.001006-2A
MBS.001006-2B
Eyepiece
WF10X(Φ18mm)
WF16X(Φ11mm)
Head
Compensation binocular head inclination 30°
Objective
Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Achromatic 100X/1.25(Spring, oil)
Focus System

Coaxial coarse/fine system focus,Minimum division of fine focusing: 2um

Coaxial coarse/fine system focus, Minimum division of fine focusing: 2um
With tensional adjustable and limit stopper, base bearing black plastic cap
Nosepiece
Quadruple backward ball bearing inner locating
Stage
Double layer mechanical, size 135x125mm, moving range 75x35mm
Condenser
N.A.1.25 Rack & pinion adjustment
Filter
Blue filter
Frosted filter
Collector
For halogen lamp
Light source
6V 20W halogen lamp with brightness control




Item
Optional Accessories
Item No.
Eyepiece
10X Dividing, 0.1mm/Div
1021010
Head


Monocular, inclination of 30°
010006
Sliding Binocular, inclination of 45°
011201
Sliding Trinocular, inclination of 45°
012201
Trinocular, inclination of 30 °
012003
Dual viewing tube,Inclination of 30°
013002
Objective
Semi-plan achromatic SP 4X/0.10
2030104
Semi-plan achromatic SP 10X/0.25
2030110
Semi-plan achromatic SP 20X/0.40
2030120
Semi-plan achromatic SP 40X/0.65(Spring)
2030140
Semi-plan achromatic SP 100X/1.25(Spring, oil)
2030111
Nosepiece
Quintuple(Frontward ball bearing inner locating)
032001
Filter Green filter
115002
Yellow filter
115003
Condenser
Dry Dark field Condenser
051001
Immersion Dark field Condenser
051002
Facility Polarize
Polarizer(360°rotatable)
111001
Analyzer
101002
Phase Contrast Unit
Eyepiece
Centering telescope
110001
Objectives
Phase contrast achromatic 10X/0.25 PHP
2410110
Phase contrast achromatic 20X/0.40 PHP(Spring)
2410120
Phase contrast achromatic 40X/0.65 PHP(Spring)
2410140
Phase contrast achromatic 100X/1.25 PHP (Spring, oil)
2410111
condenser PH-I Turnplate phase contrast condenser
052001
PH-II Turnplate phase contrast condenser
052004
Flashboard phase contrast set
052002
Pull board phase contrast set
052003
Infinity optical system
Head
Binocular inclined 30°
011101
Trinocular,inclined 30°
012101
Eyepiece
Centering telescope
110002
Objective
Infinity plan achromatic 4X/0.10
2080104
Infinity plan achromatic 10X/0.25
2080110
Infinity plan achromatic 40X/0.65(Spring)
2080140
Infinity plan achromatic 100X/1.25(Spring, oil)
2080111
Infinity phase contrast achromatic 10X/0.25 PHP
2480110
Infinity phase contrast achromatic 20X/0.40 PHP(Spring)
2480120
Infinity phase contrast achromatic 40X/0.65 PHP(Spring)
2480140
Infinity phase contrast achromatic 100X/1.25 PHP(Spring,Oil)
2480111
CCD Adapter
0.4X
810001
0.5X
810004
0.5X with dividing 0.1mm/Div
810003
1X
810002
Camera
DV-1,With USB & video output
800001
DV-2,With USB output
800003
DV-3,With video output
800005
Photography,USB Output
1096001
Photography,VIDEO Output
1108001
Adapter
Digital Camera
CANON Digital camera adapter (A610,A620,A630,A640)
820001
Photograph
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840002
MD Adapter
840004
For LED Lighsource
Input:230V 50/60HZ Output:9V 500mA
101001
Input:110V 50/60HZ Output:9V 500mA
101002
