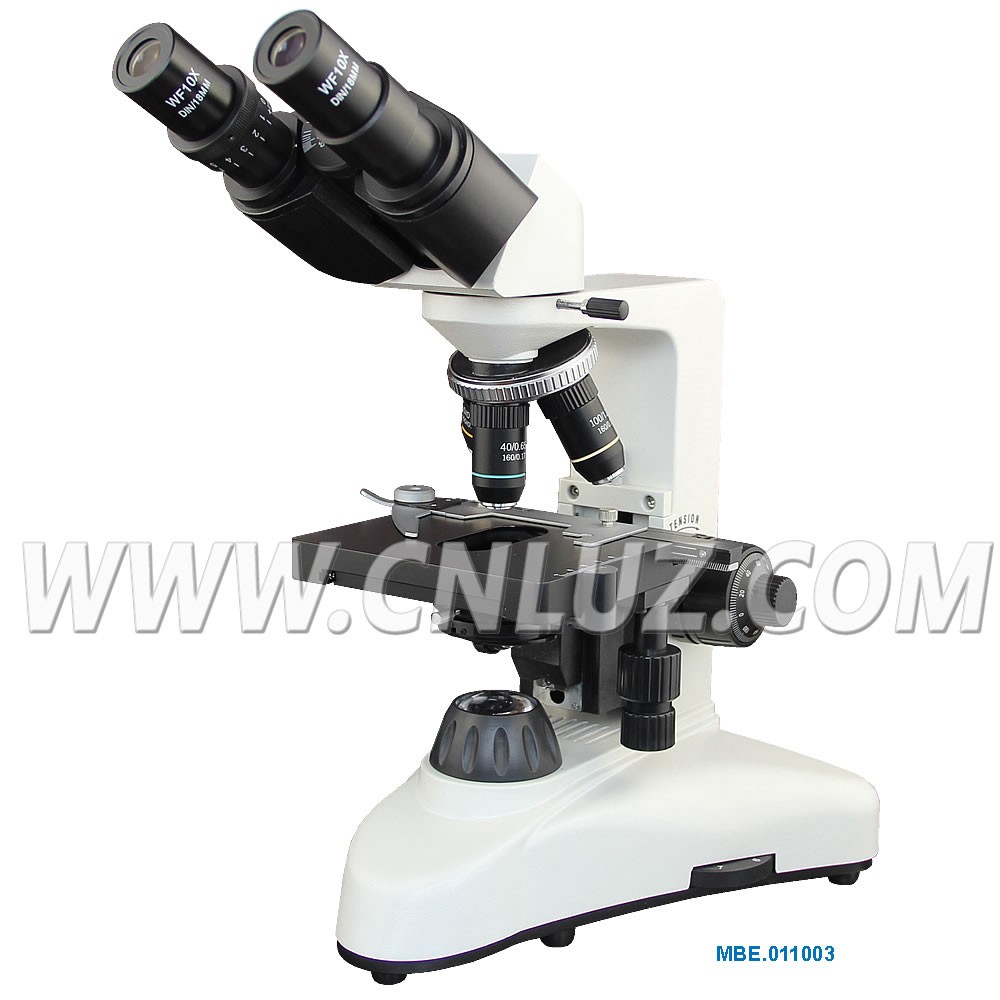

MBE.011003Binocular Elementary Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57517827.jpg
  •
  •
  •

Binocular Elementary Microscope!

Specification
MBE.011003
Head
Compensation Free Binocular,30°inclined,55mm-75mm
Eyepiece
WF10X(Φ18mm).dia 23.2mm
Objective Achromatic 4X
Achromatic 10X
Achromatic 40X,Spring
Achromatic 100X Spring,oil
Nosepiece
Quadruple Revolving
Stage
Double Layer mechanical, Size 110x126mm, moving range 70mmx30mm
Focus System

Coaxial Coarse/fine Focusing System, Minimum Division of Fine Focusing: 2um
With Tensional Adjustable

Condenser
Abbe N.A.1.2525 Condenser with Iris Diaphragm & Filter
Light source

1W High Brightness LED
