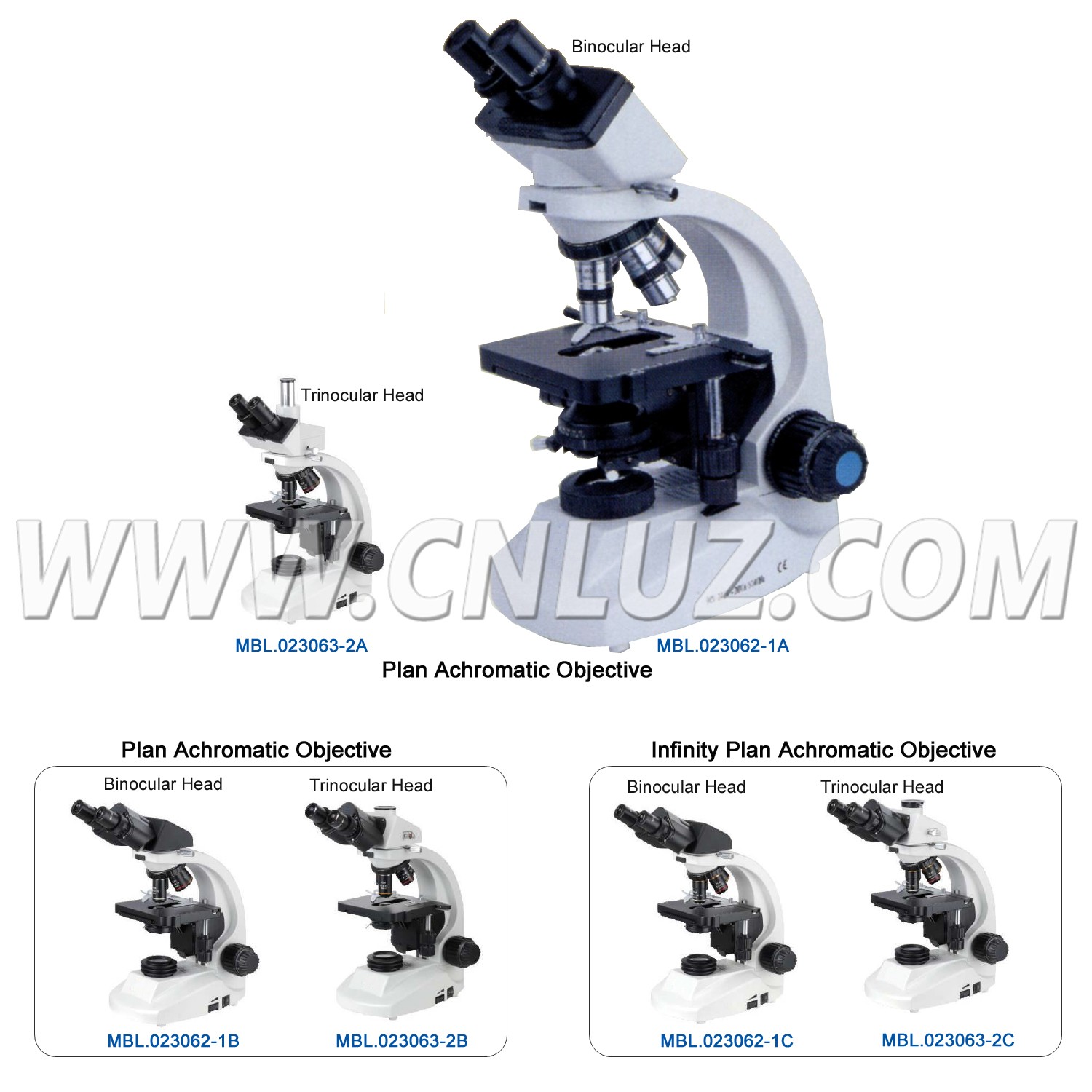

MBL.023062Binocular Compound Microscope, 40X~1600X
  • /usr/575/images/Products/Y/57518305.jpg
  •
  •
  •
  • Infinity/finity optic-corrected design
  • Achromatic plan optical system,provides you high quality images
  • International popular shape ”C” body design,ensure stability and rigidity
  • Koehler illumination give you bright and uniform lighting at any magnification
  • Swing-out condenser make u for the shortage of fixed condenser
  • Video and photographic system realize audio-visual education programme and image analysis
Specification
MBL.023062-1A
MBL.023062-1B
MBL.023062-1C
Magnification 40x~1600x
Head
Sliding Binocular Head, 45° Inclined,360° Rotatable Compensation Free Binocular Head, 30° Inclined,360° Rotatable Compensation Free Binocular Head, 30° Inclined,360° Rotatable,+/-5° Diopter Adjustable e
Eyepiece
Wide Field WF10x/18mm, High Eyepoint
Objective

Plan Achromatic
4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)



Infinity Plan Achromatic
4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
Nosepiece
Quadruple Nosepiece
Focusing
Low Position Coaxial Coarse & Fine Focusing. Coarse Focusing Range 22mm, Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit
Stage
Double Layer Mechanical Stage, 132*140mm, Mvoing Range 50*76mm, Precision 0.1mm
Condenser
N.A.1.2/0.24 Swing Out Abbe Condenser, Iris Diaphargm, With Filter Holder
Filter Blue, Dia.32mm
Power 90~240V Wide Range Voltage
Illumination
Khohler Illumination, 6V/20W Halogen Lamp

Item
Optional Accessories
Eyepiece
WF10x/18mm with Reticle
WF10x/18mm with Pointer
WF15x/13mm, High Eyepoint
WF16x/14mm, High Eyepoint
WF20x/10mm High Eyepoint
Objective


Plan Achromatic 25xs/0.40

Infinity Plan Achromatic 20xs/0.50
Phase Contrast Centering Telescope, Dia.23.2mm
5 Holes Turret Phase Contrast Condenser, N.A. 1.25
Phase Contrast Condenser for 10x
Phase Contrast Condenser for 20x
Phase Contrast Condenser for 40x
Phase Contrast Plan Achromatic Objective 100x
Infinity Phase Contrast Centering Telescope, Dia.23.2mm
Phase Contrast Condenser for 10x
Phase Contrast Condenser for 20x
Phase Contrast Condenser for 40x
Phase Contrast Condenser for 100x
Phase Contrast Infinity Plan Achromatic Objective 10x
Phase Contrast Infinity Plan Achromatic Objective 20x
Phase Contrast Infinity Plan Achromatic Objective 40x
Phase Contrast Infinity Plan Achromatic Objective 100x
5 Holes Turret Phase Contrast Condenser, N.A. 1.25
Polarization Set
Polarizer Dia..32mm, Put on Collector
Analyzer Slide, Insert To Hole On Nosepiece
Rotatable Working Stage
Dark Field Condensor
Dark Field Condenser N.A.0.9, Dry
Dark Field Condenser N.A.1.25, Immerision
Adapter 0.5x C-Mount, For 1/2" CCD, Focus Adjustable
0.35x C-Mount, For 1/3" CCD, Focus Adjustable
