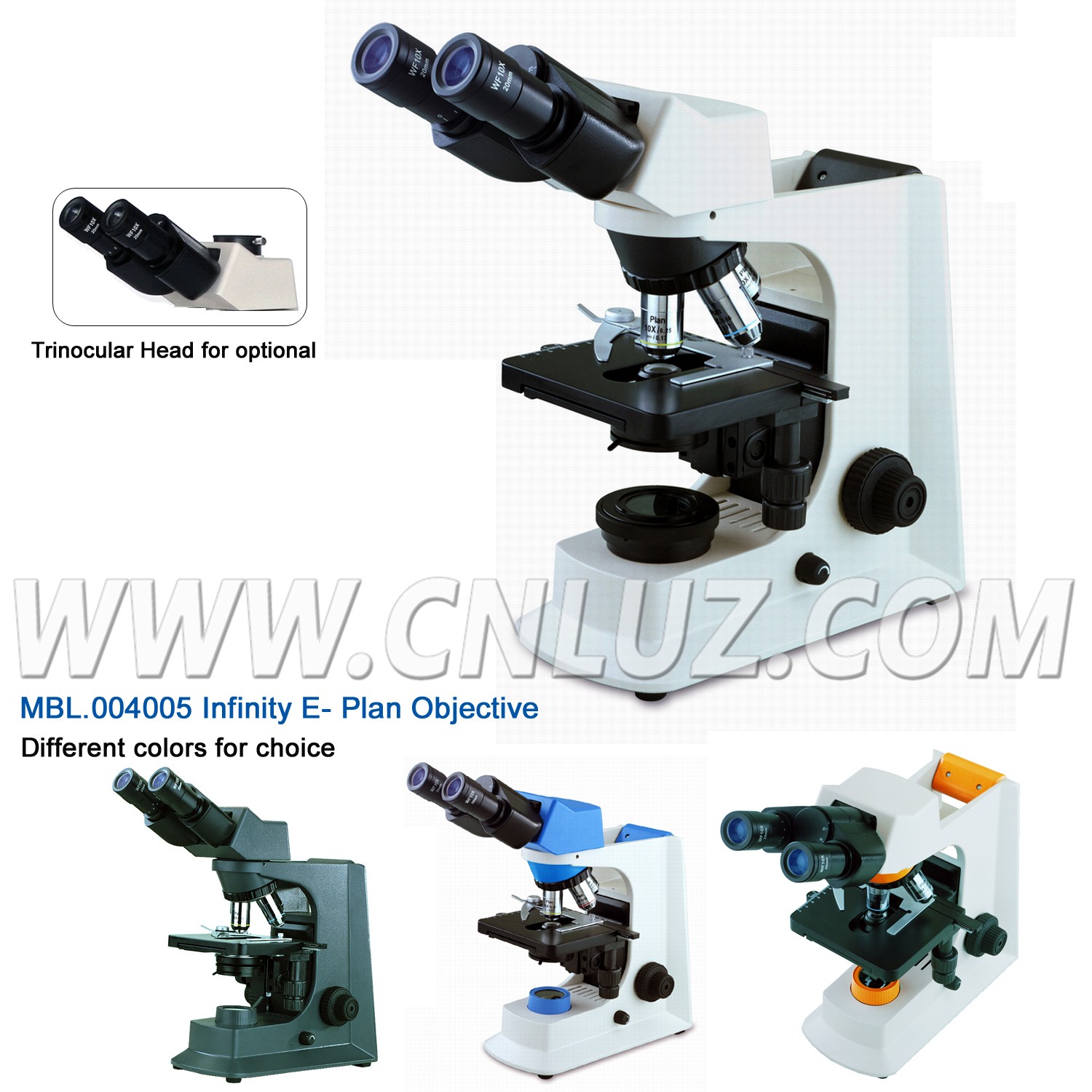

MBL.004005Binocular/Trinocular Compound Microscope, Infinity E-Plan, 40X~1000X
  • /usr/575/images/Products/Y/57518424.jpg
  • /usr/575/Picture/Y/11428.jpg
  •
  •
  • Excellent infinity optical system, outstanding resolution and definition.
  • Original integrated stand for excellent stability.
  • Unique aspheric illumination system, provide bright and comfortable lighting.
  • Various colorful matching looking can provide lively environment and happy mood.
  • Various accessories for upgrading.
Specification
MBL.004005   Infinity E- Plan Objective
Head
Binocular head, inclinded 30°, rotatable 360° Interpupillary distance 50-75mm
Eyepiece
WF10X/20mm
Objective
Infinity E-Plan 4x/0.1
Infinity E-Plan 10x/0.25
Infinity E-Plan 40x/0.65
Infinity E-Plan 100x/1.25(O.S)
Nosepiece
Quadruple nosepiece
Focusing
Coaxial coarse and fine focusing knob
Stage
Double layer mechanical, size 145x140mm, moving range 76x52mm Two Slide Holder
Condenser
Abbe N.A.1.25 with aperture iris diaphragm
Filter
Built-in blue filter Φ38.5mm
Illumination
6V 20W halogen lamp with brightness control
Packing
1pc/carton, size 42x28x45cm, G/N weight 7/6 Kgs

Item

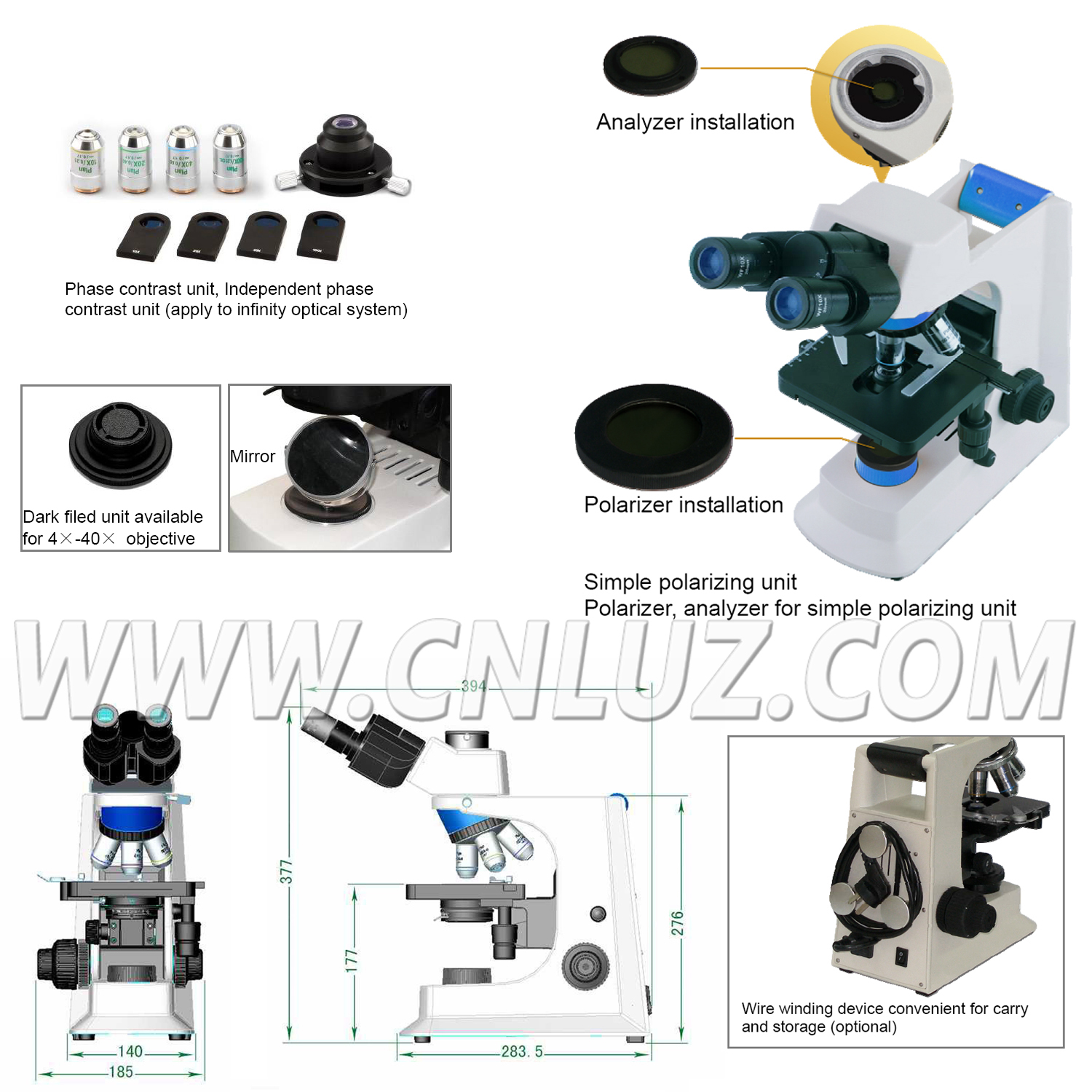

Optional Accessories
Head
Upgrad to Trinocular,Light Split 20/80
Eyepiece


WF16x/13mm
WF10x/18mm with pointer
WF10x/18mm with micrometer 0.1mm/Div
WF16x/13mm with micrometer 0.1mm/Div
Objective Infinity Plan 20x
Infinity Plan 60x(S)
Nosepiece
Upgrade to Quintule Nosepiece
Polarization Set
Analyer & Polaizer
Dark Field Condensor
Dark Field Condenser N.A.0.9 (Dry) , for 4x,10x,40x Objective
Illumination

Upgrade to 3W LED Illumination ( Non Rechargable)
Upgrade to 6V 30W Halogen Lamp
Upgrade to Rechargable 0.3W LED (including 3 rechargeable batteries)
Plano Concave Mirror
Independt Phase Contrast Unit 10x Infinity Plan Phase Contrast Objective + Phase Contrast Slide
20x Infinity Plan Phase Contrast Objective + Phase Contrast Slide
40x Infinity Plan Phase Contrast Objective + Phase Contrast Slide
100x Infinity Plan Phase Contrast Objective + Phase Contrast Slide
Fluorescentce Attachment PEpi Fluorescence Unit (three-hole) (B,G, 100W Mercury Lamp)
PEpi Fluorescence Unit (three-hole) (B,G, 3W LED Lamp)
Filter
Green
Yellow
CCD Adapter CCD Adapter 0.47x (Focus Adjustable)
CCD Adapter 1.0x
Other Wire Winding Device
