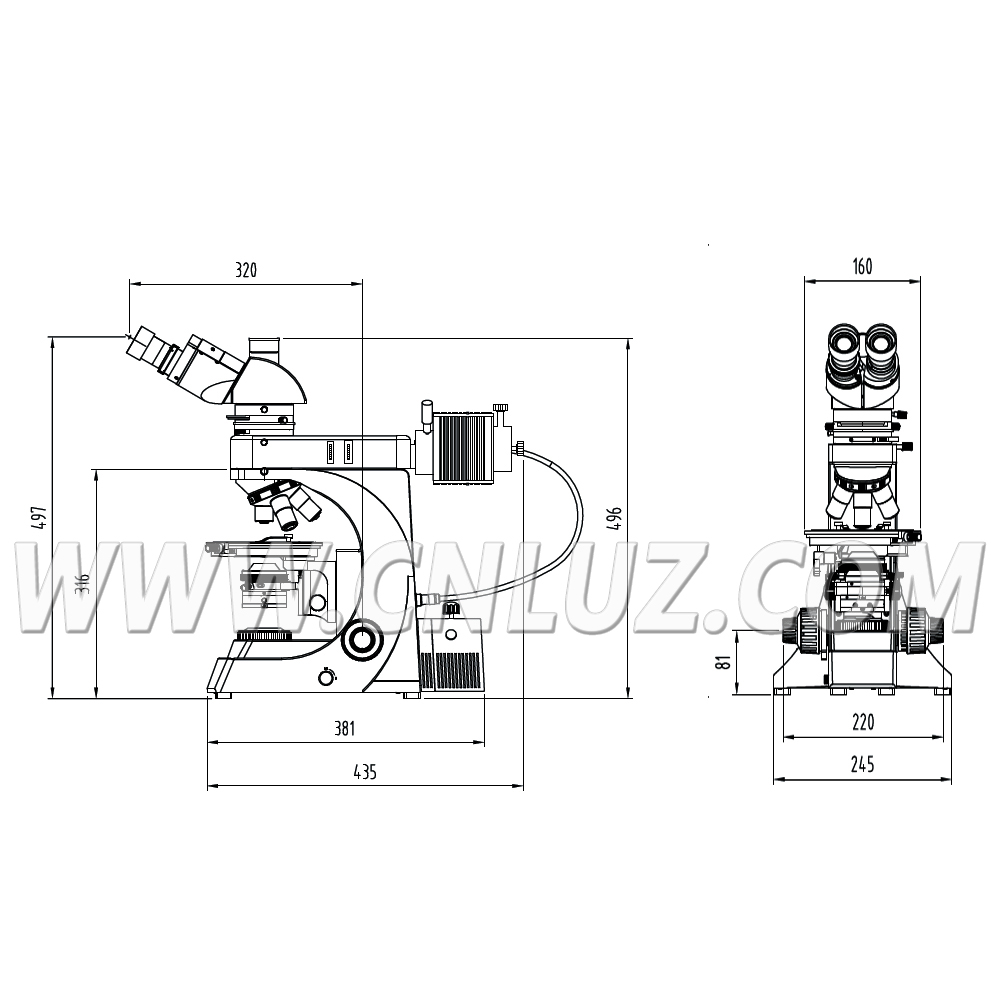

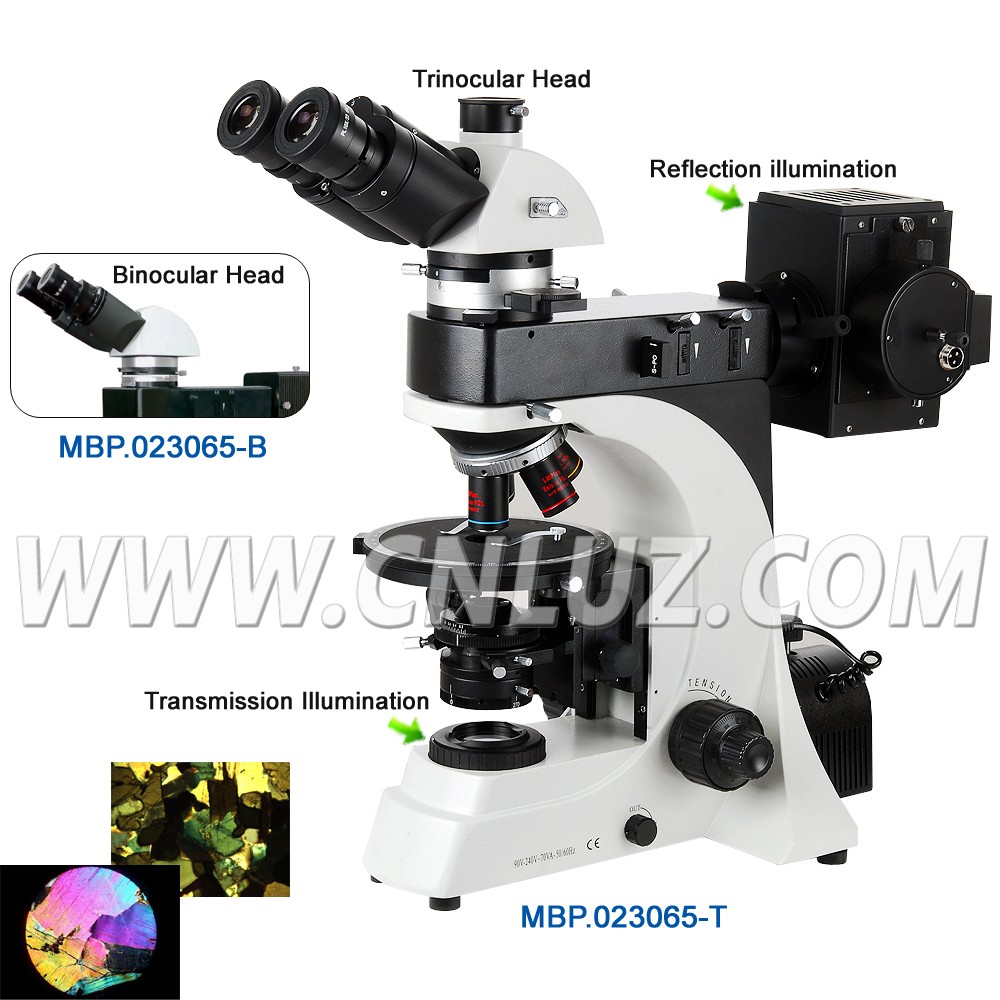

Reflected & Transmitted Polarizing Microscope
|
|
|
MBP.023065-B
|
MBP.023065-T
|
|
Optical system
|
Color corrected infinity optical system（CSIS) |
|
Viewing head
|
Infinity gemel type binocular head, 30°inclined, 360° rotatable, inter-pupillary adjustment range:54mm to 76mm, diopter adjustment of range(±5mm)
|
Infinity gemel type trinocular head，light split ratio：binocular100%，binocular:trinocular=50%:50% |
|
Eyepiece
|
High eyepoint wide field plan eyepiece PL10X/22 (one piece) |
| High eyepoint wide field plan eyepiece with reticle PL10X/22R, Diopter Adjustable (one piece) |
|
Objective
|
LWD Strain-free Infinity Plan Objective 5x
|
| LWD Strain-free Infinity Plan Objective10x |
| LWD Strain-free Infinity Plan Objective 20x |
| LWD Strain-free Infinity Plan Objective 50x( Semi-APO) |
|
Nosepiece
|
Reversed quadruple nosepiece(center adjustable and with objective center control wrench)
|
|
Focus
|
Coaxial focus system with tension adjustable and limited stopper,coarse range 28mm,fine precision 0.002mm
|
|
Stage
|
Dia.160mm circular stage, 360°rotatable;1° increments ，a does value of vemier 6'; with locking devices. The stage is through particularly fabrication processing(graphite flame plating),wear-resistant and anti-corrosion, with clips and micrometer(precision:0.01mm)
|
|
condenser
|
N.A.1.2 swing achromatic condenser, pinion and rack go up and down |
|
Illumination
|
Transmission:
Built-in Koehler illuminator systems
wide-range voltage 90-240V,
12V/50W halogen bulb
lamp filament’s center and focal length can be adjustable;
|
Reflection:
Reflection illuminator (with blue filter group)
with field diaphragm and aperture diaphragm
12V/50W halogen light house(R)
lamp filament’s center and focal length can be adjustable |
|
Analyzer
|
Built-in Analyzer, Can Shift Out Of Optical Path, 90° Rotatable;
Built-in Bertrand Lens, Center And Focus Adjustable
|
|
Compensator
|
λ Plate : F=18mm, First-class Red, Light Path Aberration: 551nm
|
|
1/4 λ Plate : F=18mm, First-class Ashen, Light Path Aberration: 147.3nm
|
|
Quartzose Chock : 12x28mm, Produce I-IV Interfere Color
|
|
Polarizer
|
360° Rotatable, Can Shift Out From Optical Path
|
|
Filter
|
Filter |
