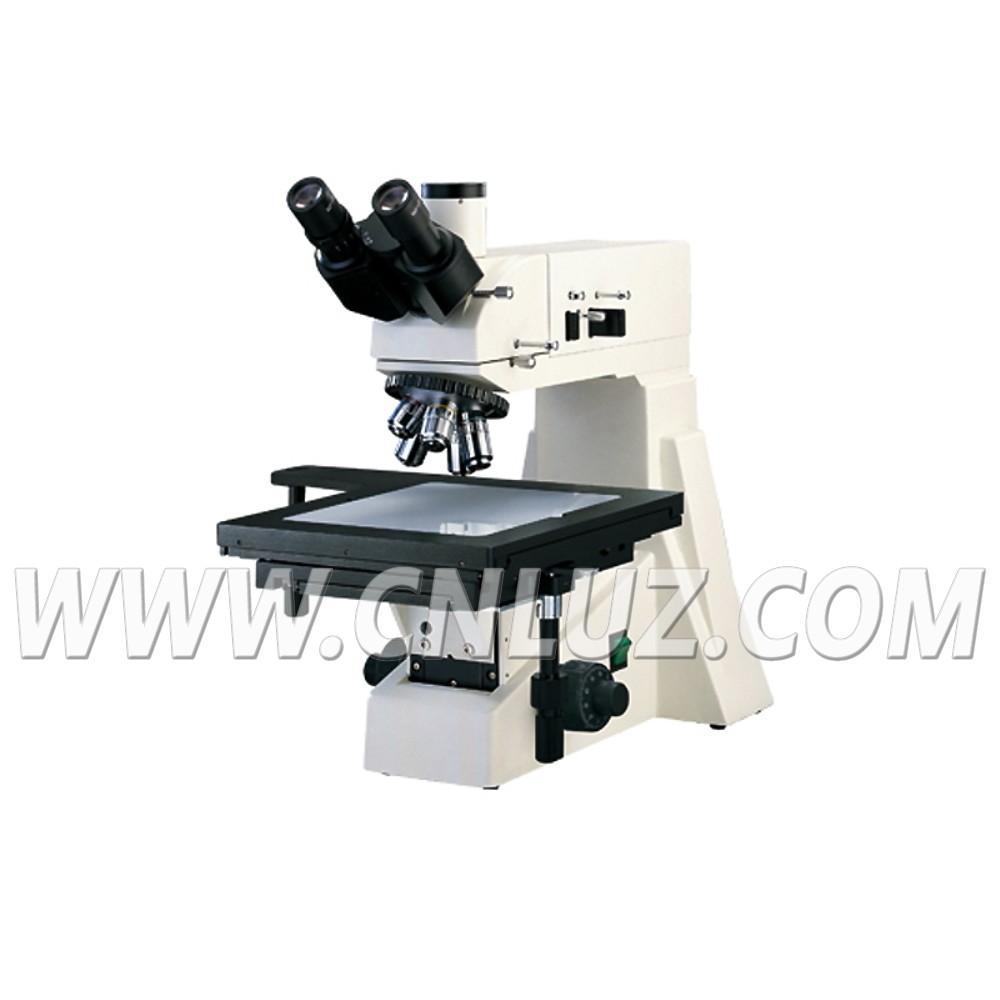

MMU.001003Upright Metallurgical Microscope

This reflected metallurgical microscopes is suitable to observe the microscopeical surfaces of non-transparent object. Equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular head, it has clear and high contrast picture beautiful sculpt.
It is deal instruments in research work in biology, metallography, mineralogy,precision engineering, electronics and etc.

Plan achromatic objectives with long working distance (no cover glass)
Large move range mechanical stage, move quickly and slowly as you need
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 7μm
6V 20W halogen lamp, brightness control.
Trinocular head can switch to observe normally or to observe the Polarize, can send 100% of light to the binocular eyepieces or to the top port.

Specification	MMU.001003-A	MMU.001003-B
Eyepiece	Wide field eypieceWF10X(18mm)
Head	Trinocular, Inclination of 30°(Analyzer with field diaphragm to switch)
Objective	Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12, working distance 18.3mm
	Plan achromatic objectives with long working distance (no cover glass) PLL10X/0.25 , working distance 8.9mm
	Plan achromatic objectives with long working distance (no cover glass) PLL20X/0.40, working distance 8.7mm
	Plan achromatic objectives with long working distance (no cover glass) PLL40X/0.60, working distance 3.7mm
	Plan achromatic objectives with long working distance (no cover glass) PLL80X/0.80(Spring), working distance 0.96mm
Focus System	Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing:0.7um
Nosepiece	Quintuple (Frontward ball bearing inner locating)

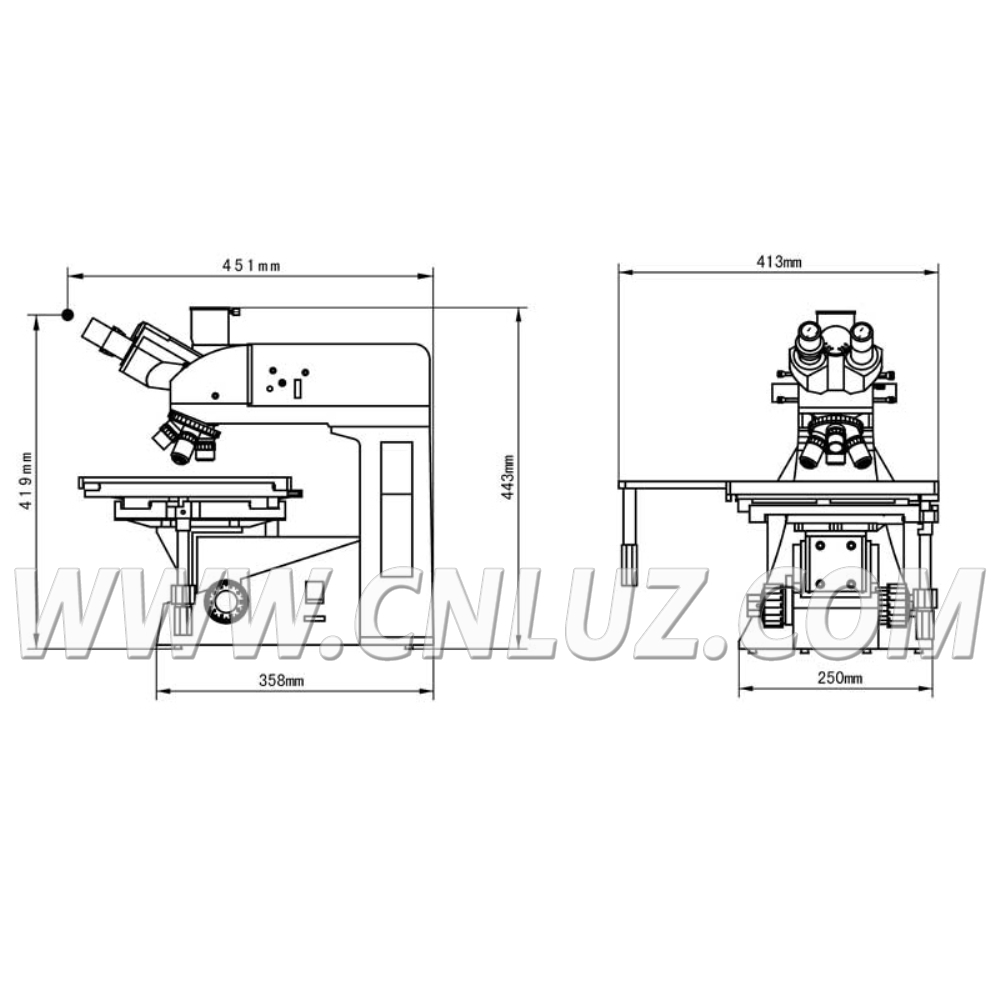

Stage	Three layer mechanical,size:250x230mm, moving range 154x154mm	Three layer mechanical,size:280x270mm, moving range 204x204mm
Reflected Illumination Unit	Vertical illumination with field diaphragm, aperture diaphragm and polarizer, (Y,B,G) filter and frosted filter
	6V 20W halogen lamp with brightness control

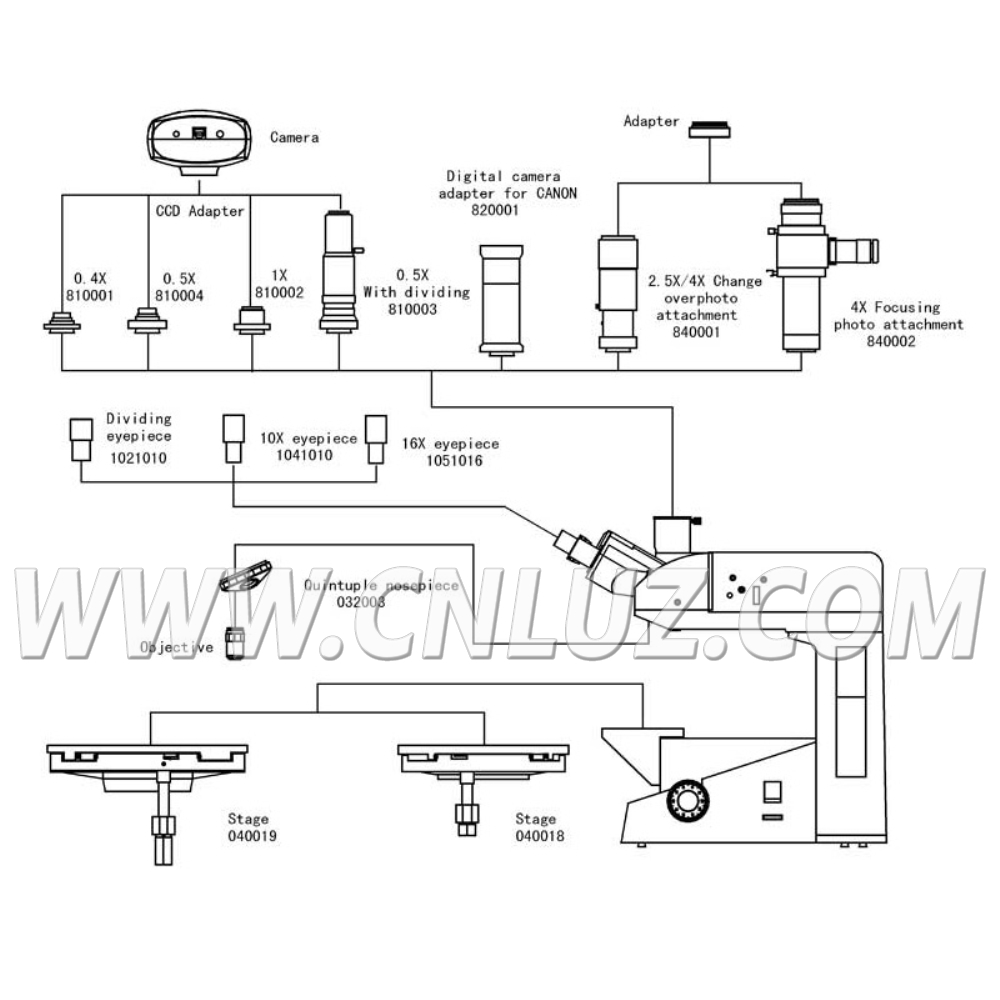

Item	Optional Accessories
Eyepiece	Wide field WF16X(Φ11mm)
Eyepiece	Dividing 10X(Φ18mm) 0.1mm/Div
Objective	Plan achromatic objectives with long working distance (no cover glass) PLL 50X/0.70, Working distance:2.02mm
	Plan achromatic objectives with long working distance (no cover glass) PLL 60X/0.75 Working distance:3.7mm
	Plan achromatic objectives with long working distance (no cover glass) PLL 100X/0.85 (Spring) Working distance:0.4mm
	Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, oil) Working distance:0.3mm
CCD Adapter	0.4X
	0.5X
	1X
	0.5X with dividing 0.1mm/Div
Camera	DV-1 With USB & video output
	DV-2 With video output
	DV-3 With USB output
Digital Camera Adapter	Digital Camera Adapter for CANON
Photo Adapter	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	PK Adapter
	MD Adapter
