MMU.023070Binocular/Trinocular Upright Metallurgical, 50X~500X

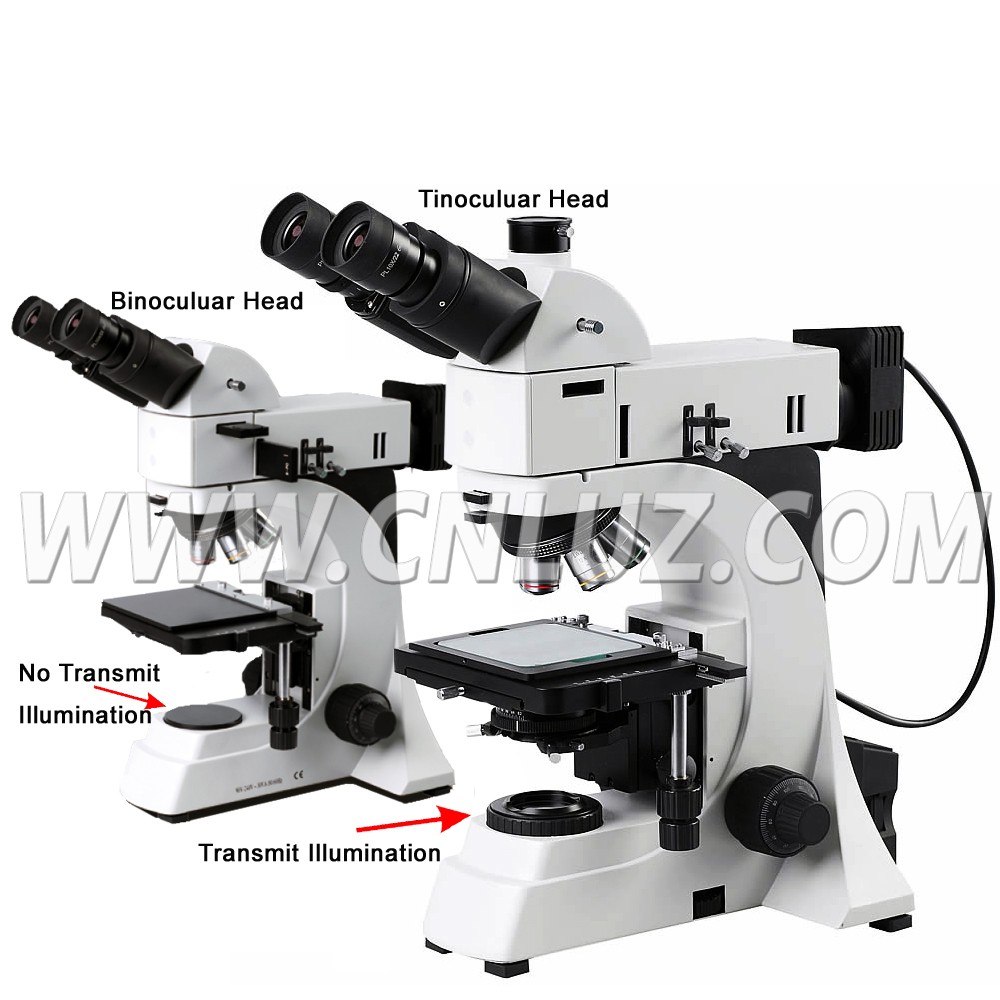

  • /usr/575/images/Products/Y/57518565.jpg

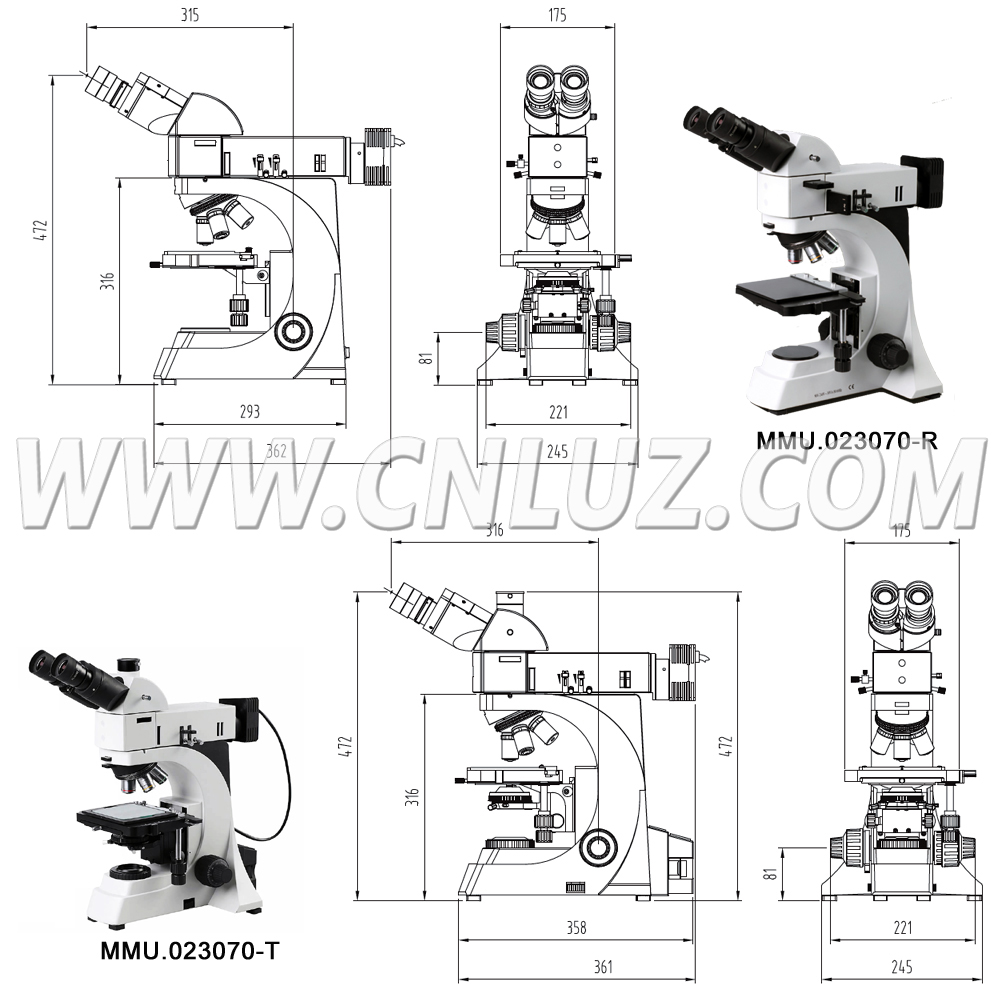

  • /usr/575/Picture/Y/11464.jpg
  •
  •
  • Optical system：Color Corrected Infinity Optical System（CSIS），better image, higher resolution, more comfortable observation.
  • Eyepiece and Objective：high eyepoint widely plan eyepiece PL10x/22mm，provide more widely and plan observation space and can be installed various of micrometer. Professional infinity plan achromatic LWD metallurgical objective, no cover glass design.
  • Viewing head：Gemel binocular/trinocular/digital head,diopter adjustable 30° inclined,can photograph and image pickup,can collect and preserve the image, also can analysis the image with computer and specialized software.
  • Focus：Low hand position coaxial coarse and fine focusing mechanism, Coarse adjustment range 28 mm , precision of fine adjustment: 0.002mm，with stage position upper and lower adjustment mechanism, sample height up to 50mm（reflection）、30mm（transmission and reflection），with coarse tension adjustment devices and random limit device.
  • Illumination system：reflected illuminator with oblique lighting, when observe the fine structure,it can be generated 3-D relief special observation. Adaptive 90V- 240V voltage，single 3WLED high brightness cold light source.
Specification
MMU.023070-B
MMU.023070-T
Head
Compensation Free Binocular Head, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5°
Compensation Free Trinocular Head, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5° , Spliting Ratio 50:50
Eyepiece

High Eyepoint Plan PL10x/22mm
Objective
Long Working Distance Infinity Plan Metallurgical Achromatic LMPL5X/0.15WD10.8MM
Long Working Distance Infinity Plan Metallurgical Achromatic LMPL10X/0.3WD10MM
Long Working Distance Infinity Plan Metallurgical Achromatic LMPL20X/0.45WD4MM
Long Working Distance Infinity Plan Metallurgical Achromatic LMPL50X/0.55WD7.8MM
Nosepiece
 Backward Quintuple Nosepiece
Focusing
 Coaxial Coarse & Fine Focusing, Coarse Focus Range 28mm, Stage Height Adustable, Maximum Object Height 50mm, Fine Focusing Precision 0.002mm, with Tension Adjustment,with Up-limited Stop
Stage
  • Double Layer Working Stage, Size 175*145mm, Moving Range 76*42mm
  • Metal Plate for Reflect Illumination
  • Double Layer Working Stage, Size 175*145mm, Moving Range 76*42mm
  • Glass Plate for Transmit Illumination
Condenser
/
 Swing-out Condenser N.A.0.7, for Transmit Light
Filter Green Filter, Dia.45mm
Reflect Illumination
 Reflect Kohler Illumination, with Field Diaphragm and Aperture Diaphragm, Center Adjustable, with Oblique Lighting, Single High Power 5W LED, Warm Light, Pre-Centered, Light Intensity Continuously Adjustable
Transmit Illumination No Transmit Illumination Transmit Illumination, 12V50W Halogen, with View Field Diaphragm, with Iris Diaphragm, Center Adjustable, with Oblique Light
Power
 90-240V Wide Range Power Supply

Item
Optional Accessories
Eyepiece
 High Eyepoint Plan PL15x/16mm PL15x16
High Eyepoint Plan PL10x/22mm, with Cross PL10x22r,
High Eyepoint Plan PL10x/22mm, diopter adjustable, PL10x22T
Objective

Long Working Distance Infinity Plan Metallurgical Achromatic LMPL100X/0.8 WD2.1MM
Interface Filter For Reflect illumination Blue, <480nm
Green, 520~570nm
Red, 630~750nm
Netural, for White Balance
Interface Filter For Transmit Ilumination Yellow,Dia.45mm
Green,Dia.45mm
Blue,Dia.45mm
Netural,Dia.45mm
Polarizing For Reflect Illumination Fixed Polarizer Flashboard, Dia.30mm
Fixed Analyser Flashboard,Dia.30mm
Polarizing For Transmit Illumination Polarizer Set,Dia.40mm
360° Rotatable Analyser Flashboard
Adapter Photo Adapter with 3.2x Photo Eyepiece, PK or MD Mount
Digital Camera Adapter with Photo Eyepiece
1.0x C-Mount
0.5x C-Mount, for 1/2" CCD
0.35x C-Mount, for 1/3" CCD
Digital Camera Adapter with Photo Eyepiece
Photo Adapter with 3.2x Photo Eyepiece, PK or MD Mount
