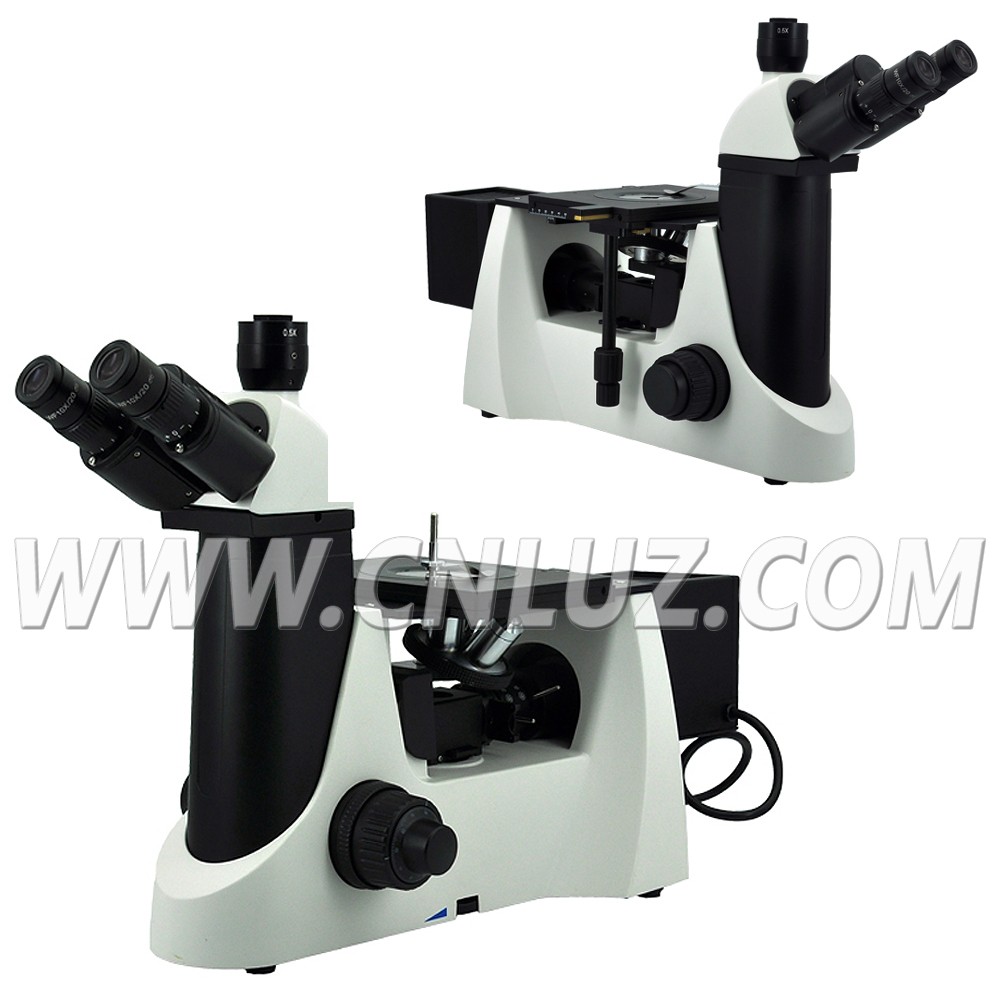

MMI.038005Inverted Metallurgical, 100~800X, UCIS infinity system
  • /usr/575/images/Products/Y/57519486.jpg
  • /usr/575/Picture/Y/11577.jpg
  •
  •
  • It is suitable for electronic, metallurgy, chemical industry and instrumentation industry.
  • It is also suitable for medicine, agriculture, forestry, public security, schools, scientific research departments for observation and analysis.
  • It is also an ideal instrument for the research of metal science, mineralogy, precision engineering, electronics and so on.
  • It can be used with digital camera device.
Specification
MMI.038005
Optical System UCIS infinity independent achromatic optical system
Frame One-piece construction from arm to base
Head
Seidentopf trinocular head, 30° inclined, interpupillary distance 52-75mm, diopter adjustable
Eyepiece
WF10x/18mm, high eyepoint up to 21mm,, reticule eyepiece, diopter adjustable
WF10x/20mm, plan, high eyepoint up to 21mm
Objective
Infinity LWD plan achromatic objective 10x
Infinity LWD plan achromatic objective 20x(s)
Infinity LWD plan achromatic objective 50x(s)
Infinity LWD plan achromatic objective 80x(s)
Nosepiece Quintuple, reversed type with positive click stops
Focusing Coaxial coarse and fine focus mechanism with markings. fine focus sensitivity 1μm, coarse range 14mm
Stage
Low position, mechanical stage, size 180x150mm, moving range 80x50mm.
Drop specimen holder(φ110)
Specimen holder
Illumination
Metallurgical reflected illuminator
100W halogen lamp house,
Electrical parts for 12V 50W halogen lamp
12V50W Halogen bulb (Osram)
250V/5A Φ5X20 Fuse
Power supply 110-240V 50/60Hz
Filter(Φ32) Blue filter
Green filter
Yellow filter
Polarizing Attachment Analyzer
  Polarizer
Other
Allen screw driver 1.5mm
Allen screw driver 2mm
Allen screw driver 3mm
Metallurgical micrometer(1/100mm)
Dust cover
Power cord

Item
Optional Accessories
Eyepiece
WF10x/22mm plan eyepiece, high eyepoint
WF10x/20mm reticule eyepiece, high eyepoint, diopter adjustable
Head Seidentopf binocular head, 30° inclined, interpupillary distance 52-75mm, diopter adjustable
Seidentopf binocular head, 30° inclined, interpupillary distance 52-75mm, diopter adjustable (For FOV 22mm)
Seidentopf trinocular head, 30° inclined, interpupillary distance 52-75mm, diopter adjustable (For FOV 22mm)
Objective Infinity plan achromatic objective 5x
Infinity plan achromatic objective 100x
Filter White Filter(Φ32)
Objective

0.5x C-Mount
1.0x C-Mount
0.25x C-Mount (suitable to 1/3" CCD)
Digital camera adapter (need to know camera brand)
Micrometer Optical Metallurgical Micrometer
