Upright Fluorescent Microscope_IHPVISION:Microscope,Digital Vision

Home > Products > Fluorescent Microscope > Upright Fluorescent

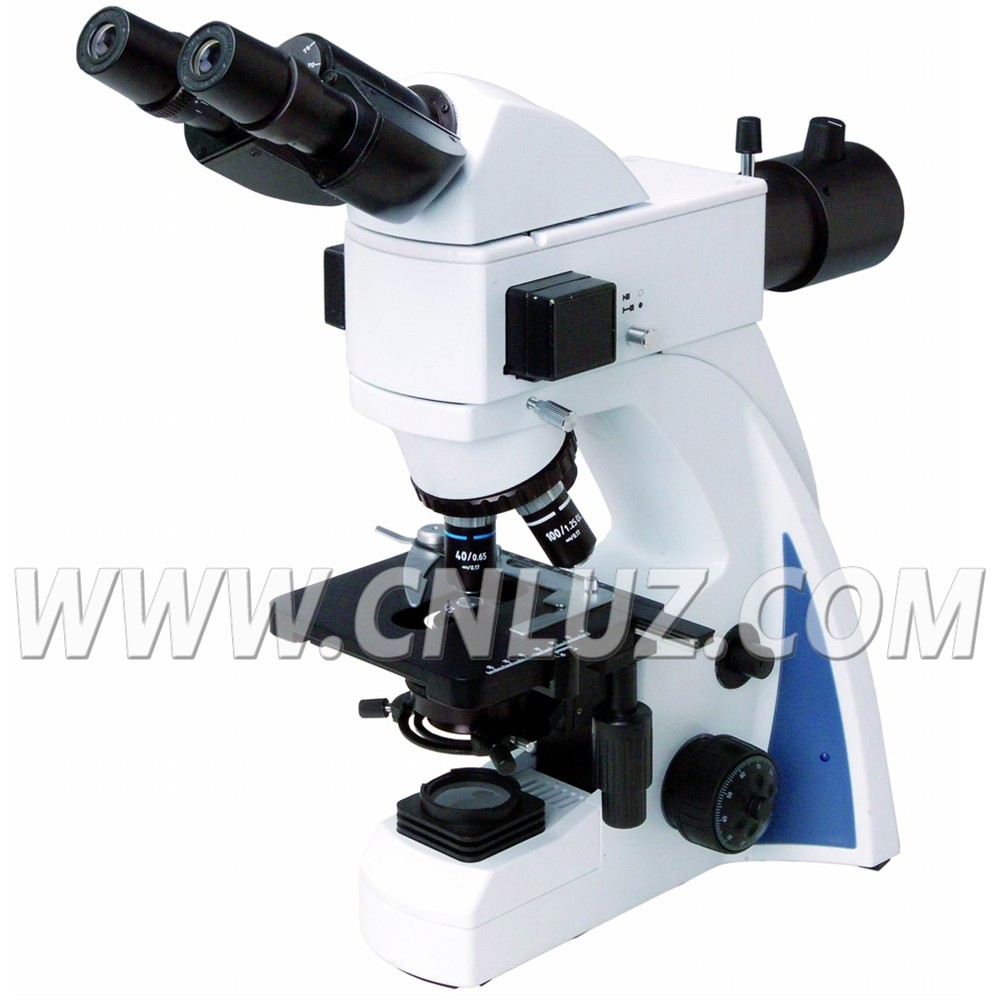

MFU.003059Upright Fluorescent Microscope

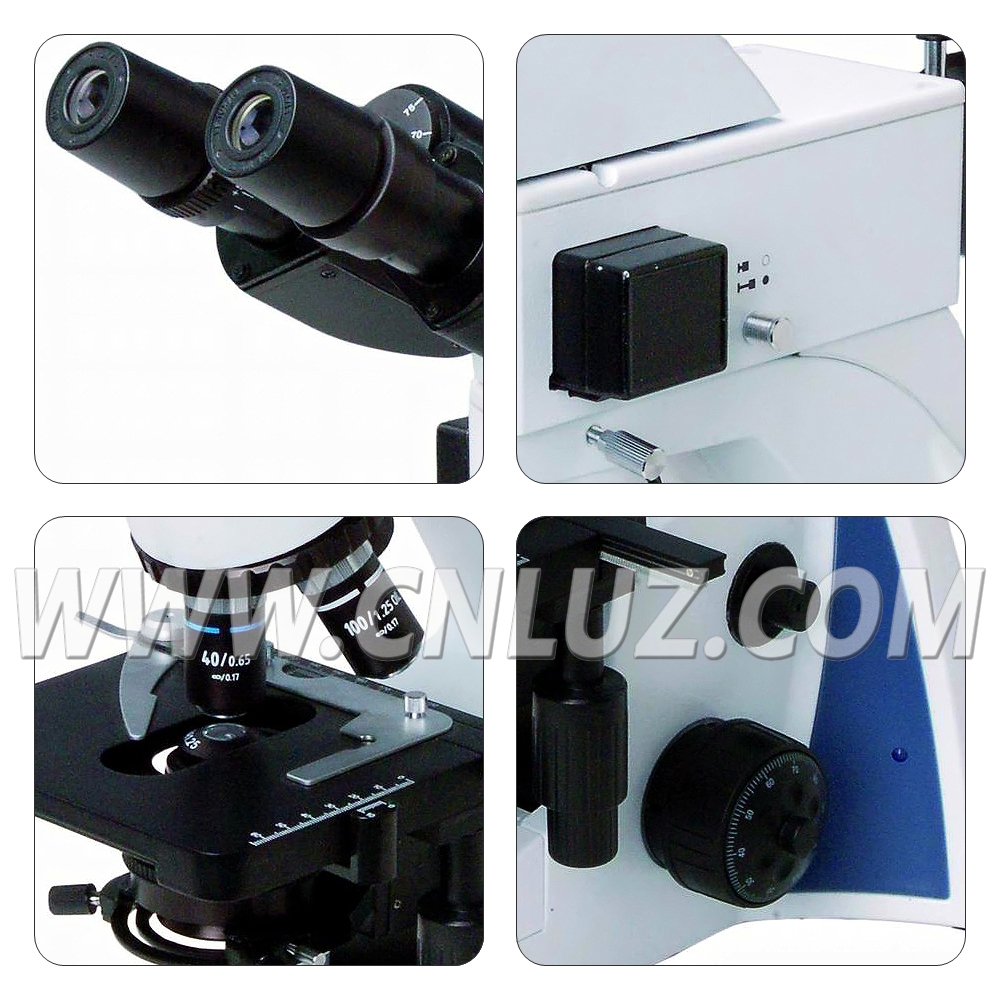

MFU.003059 LED Fluorescence Microscope, Newly designed with comfortable operating with ergonomic structure, with better illumination, convenient replacement of attachment with sliding-in center adjustable condenser.

S-LED Light Source, Brightness Adjustable
LED Fluorescent System, B,G Fluroescent Filter Available

Specification	MFU.003059-25	MFU.003059-35
Head	Seidentopf Binocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable	Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable
Optical System	Infinity optical system
Eyepiece	Wide Field Eyepiece 10x/18mm
Objective	Infinity Semi-Plan Achromatic Objective 4x
	Infinity Semi-Plan Achromatic Objective 10x
	Infinity Semi-Plan Achromatic Objective 40x
	Infinity Semi-Plan Achromatic Objective 100x
Nosepiece	Backward Quintuple Nosepiece
Focusing	Coaxial Coarse & Fine Adjustment, Focusing Range 20mm, Fine Division 0.002mm
Stage	Double Layer Mechanical Stage, 140140mm, Moving Range 5075mm
Condenser	Abbe Condenser N.A.1.25
Illumination	S-LED Light Source, Brightness Adjustable

Item	Optional Accessories
Objective	Infinity Plan Achromatic Objective 20x
Fluorescent System	Infinity Plan Fluorescent Objective 4x/0.13/0.17, W.D.16.3
	Infinity Plan Fluorescent Objective 10x/0.3/0.17, W.D.12.4
	Infinity Plan Fluorescent Objective 20x/0.5/0.17,W.D.1.5
	Infinity Plan Fluorescent Objective 40x/0.75/0.17,W.D.0.35
	Infinity Plan Fluorescent Objective 100x/1.3/0.17,W.D.0.13
	--3W LED Fluorescent Light 525-530m --Green Excitation Filter, BP510~550, DM570, BA590
Adapter	Photo Adapter
	C-Mount 1.0x
	C-Mount 0.5x
