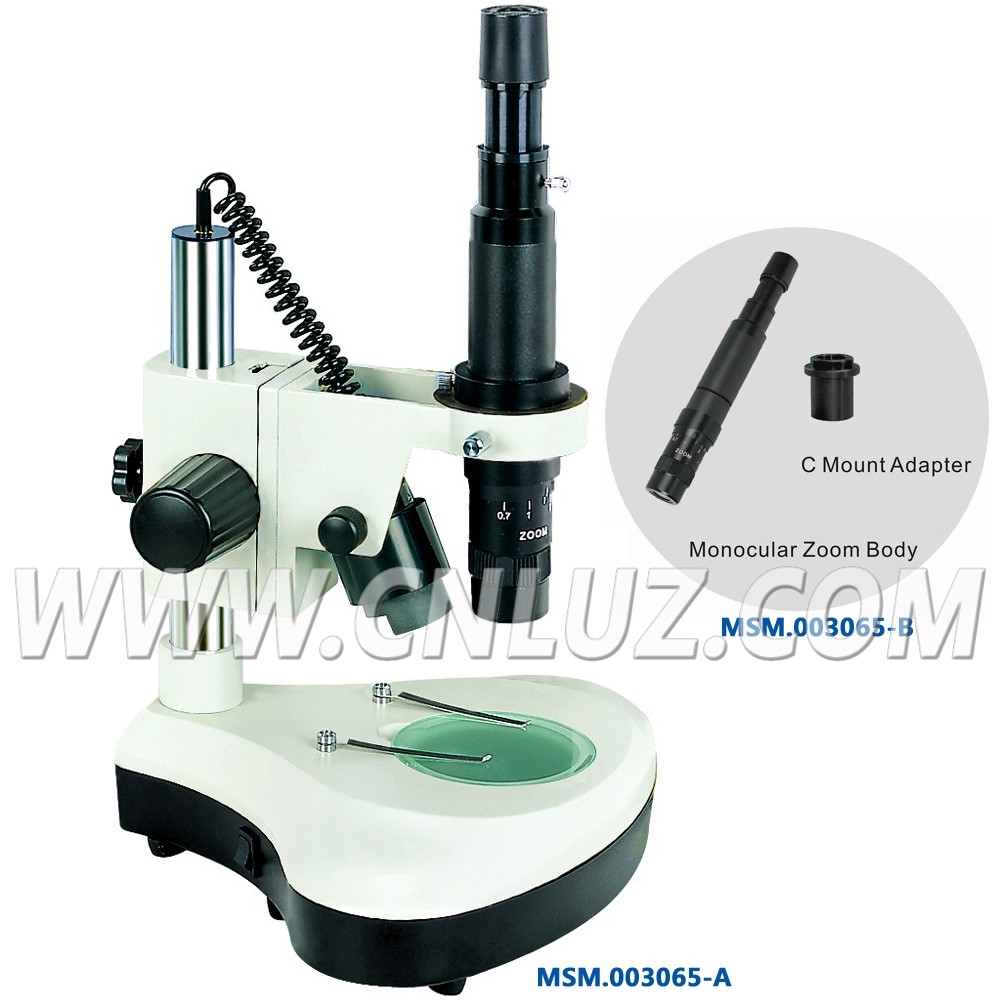

Monocular Zoom Microscope, With wider viewing field, digital camera to connect to computer or TV, can be widely used in electronic industry, educational demonstration and agriculture for micro object observation, inspection and measurement.
Specification
MSM.003065-A
MSM.003065-B
Magnification
Main Body 0.7~4.5x, With Eyepiece Up To 7~45x. With 15" Monitor Up to 400x
Zoom Ratio
1:6.5
Eyepiece
Eyepiece WF10x
Working Distance
90mm
Stand
Fan Stand, With Black/White Plate Or Frosted Glass Dia.90mm, With Specimen Clip, Focusing Range 55mm
Main Body Without Stand
Light Source
Upper 6V15W Halogen, Bottom 6V20W Halogen Light
No Light Source
Adapter
C-Mount Adapter
Item
Optional Accessories
Auxiliary Lens
0.3x
0.5x
2.0x
0.45x Medium Adapter
Stage
Manual Working Stage 145*195mm, Moving Range 50*50mm
