| Digital Parts |
|

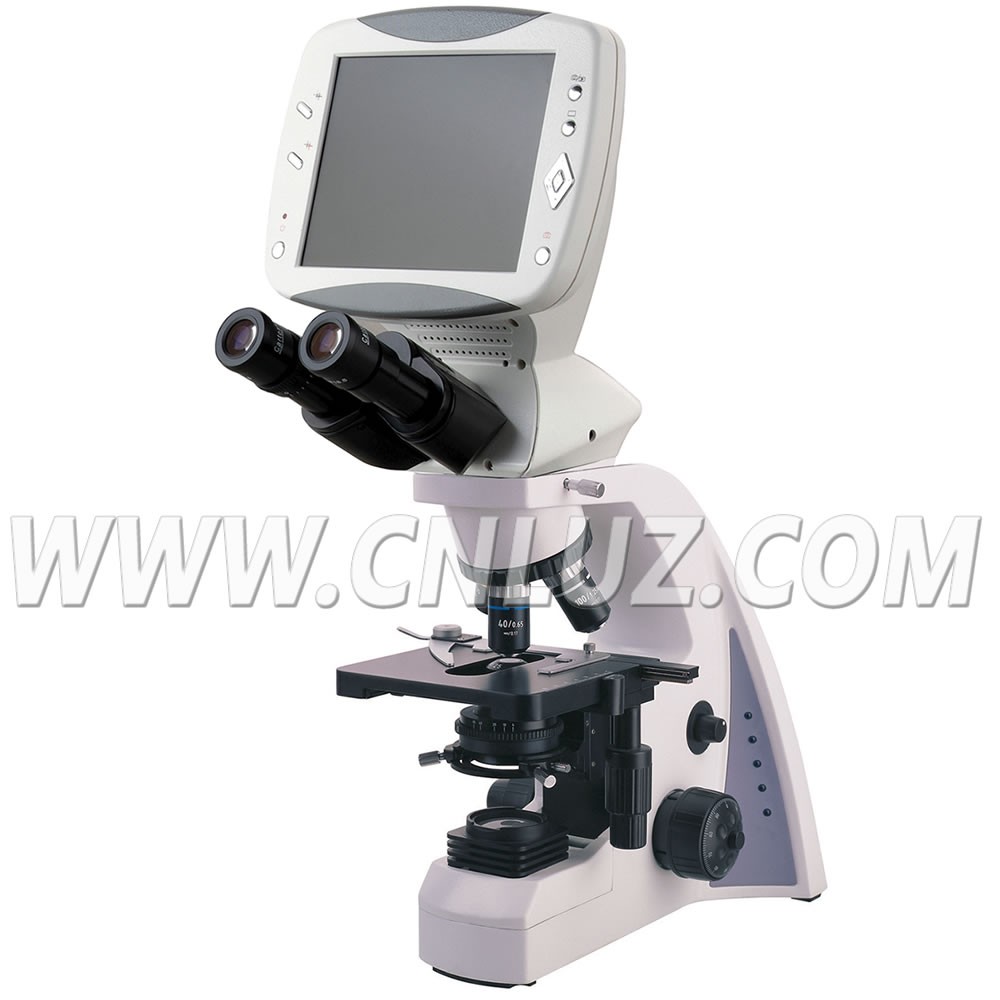

MLB.003075 9" LCD Biological Microscope
|
|
LCD Screen
|
9 HD Inches LCD Screen, Resolution is 1280X 800
|
|
Pixel
|
5.0M
|
|
Resolution
|
Photo Resolution 2560*1920, 1600*1200
|
|
Video Resolution 1080*720
|
|
|
CMOS 1/2.5 Inches
|
| Maginfication |
Digital Maginfication 8x |
|
Video Output
|
AV, NTSC/PAL
|
|
Data Output
|
USB 2.0
|
|
HDMI
|
|
External Interface
|
PC/Projector/Monitor
|
| Storage |
Standard, Softness, Vivid |
|
Language
|
Chinese, English Menu
|
|
Storage
|
SD Card Slot, Support Maximum SD Card 4G (Optional)
|
|
Exposure Mode
|
Manual/Auto
|
| White Balance |
Manual/Auto |
|
Date Mode
|
Year, Month, Day, Hour, Minute
|
| Color Mode |
Color/ Black & White/Negative |
| Measurement |
Crosshair |
| Position |
Crosshair, Arrorw Pointer |
|
Coordinate Color
|
Blace, White, Red, Blue, Green
|
| Optical Parts |
Head
|
Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 52-75mm, Eyepiece Tubes Rotated 180° Up & Down
|
|
Eyepiece
|
Wide Field Eyepiece WF10x/18mm
|
|
Nosepiece
|
Backward Quadruple Nosepiece
|
|
Objective
|
Infinite Semi-Plan Achromatic Objective 4X/0.10
|
|
Infinite Semi-Plan Achromatic Objective 10X/0.25
|
|
Infinite Semi-Plan Achromatic Objective 40X/0.65 (Spring)
|
|
Infinite Semi-Plan Achromatic Objective 100X/1.25 (Spring,Oil)
|
|
Focusing
|
Coaxial Coarse & Fine Adjustment, Moving Range 20mm
|
|
Stage
|
Double Layer Mechanical Stage, Size 140×140mm, Moving Range 75×50mm
|
|
Condensor
|
Sliding-in Center Adjustable Condenser N.A.1.25
|
|
Illumination
|
S-LED Illumination, Adjustable Brightness
|
