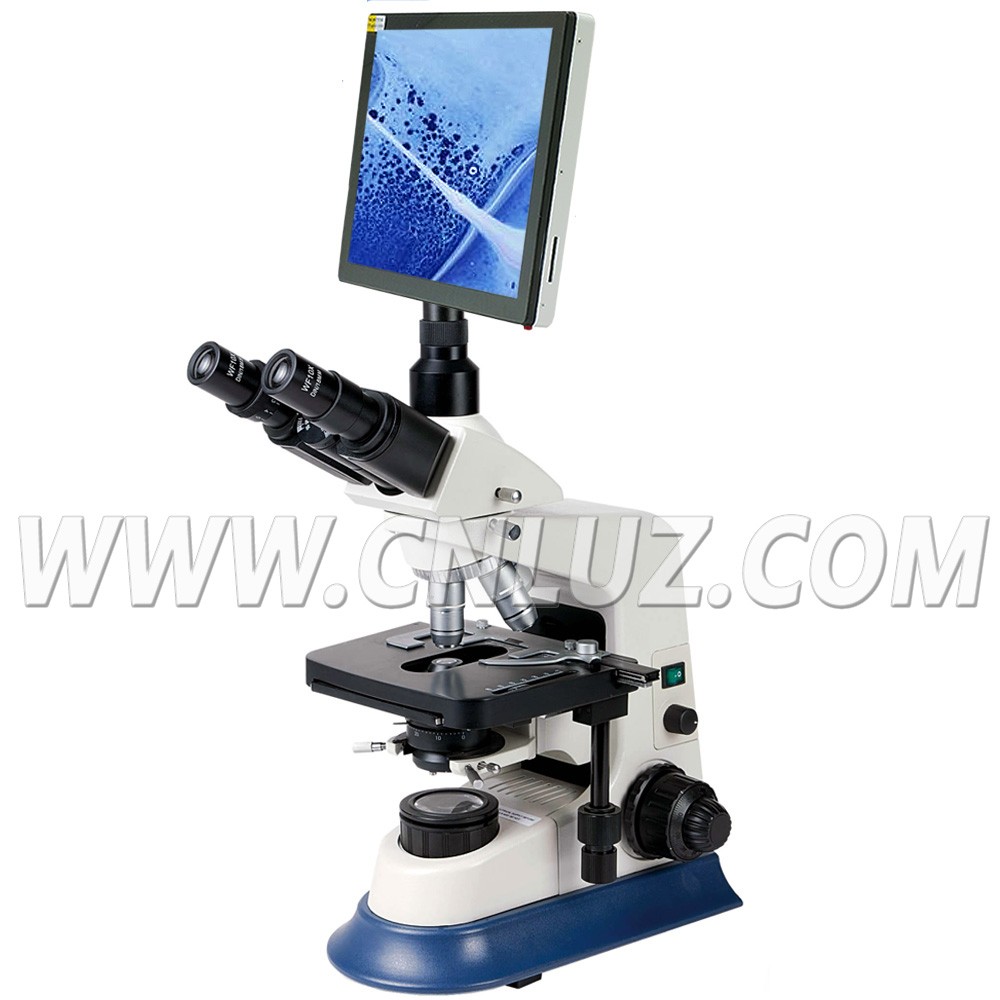

MLB.040005LCD Biological Microscope, 9.7" LCD, 5M, 40~1000X
  • /usr/575/images/Products/Y/57519484.jpg
  •
  •
  •



9.7’’ LCD Screen,resolution 1024*768

5.0M CMOS Image Sensor built-in

Compensation Free Head !

High efficiency, flexibility, stability is a kind of biological microscope for all kinds of applications in the field of daily work and development. It can be widely used in a variety of laboratories, schools, hospitals.It is the first choice for individuals, schools, hospitals and scientific research units.

  • Wide field eyepiece, high brightness lighting system and high-quality optical components of high-definition imaging to high brightness;
  • Built-in converter and high quality objective lens, so that the user to operate with more convenient space and better observation effect;
  • Large mechanical platform and double plate specimen clip for observation and testing to provide convenient;
  • Accurate focusing mechanism and reasonable design of human nature to make the operator feel relaxed;
  • Front pull type set light mirror, let the user change the light bulb more quick and easy.
9.7" LCD Pad with Andriod System of MLB.040005
Specification of LCD PAD
LCD Screen 9.7" HD Diagonal IPS LCD
Resolution 1024*768
Backlight Screen
Five Point Touch Screen
Hardware Power Switch
CPU 1.6GHz Four Core ARM Mali-400 MP GPU
Support OpenGL ES 1.1/2.0 And OpenVG 1.1
Support Full HD 1080p
Support Android 4.2 System
RAM 2GB, Support DDR3, DDR2, LPDDR2
Data Storage SD Card Slot, Support Max 32GB C10 High Speed SD Card
Data Interface HDMI, Mini USB2.0, USB 2.0
Operation System Android 4.2 System, Multi Language
Power Wide Voltage AC 100~240V, DC 5V/2A with External Power Adaptor,
Power Mode : Normal, Sleep, Power Off
WIFI Support
Bluetooth Support
Software YX Camera Installed,
--Can Adjust Real Time Image
--Can Measure Length, Area, Angle, Count
--Can Take Picture, Record Video
YX Image Installed
--Grey, Contrast, Brightness Adjust
--Binary Image For Granular Count
Both Software Chinese/English Version, With Instruction Manual Installed
Product Size Pad 17.5*22.5*2.0cm
Package Size Packing Box 10*24*29cm, 1 pc/Box
Specification of Digital Camera Senser 1/2.5" CMOS, Color, Aptina MT9P001
Resolution
5.0M Pixels, Maximum Photo Resolution 2592*1944
Pixel Size 2.2um*2.2 um
Effective Image Size 5.70(H) * 4.28(V)mm, (7.23mm Diagonal)
Frame Rate 1280*720/15 Fps, 640*480/30Fps
Dynamic Range 66.5dB
SNR 40.5dB Max
ADC 12 Bit, On Chip
Shutter Type ERS, Auto
White Balance Auto
Connect Standard C-Mount Interface

Specification of Main Body
Specification
Main Body of MLB.040005
Head
Compensation Free Trinocular,45°inclined,52mm-74mm
Eyepiece
WF10X
Objective
Plan Achromatic Objective 4x
Plan Achromatic Objective 10x
Plan Achromatic Objective 40x,Spring,Oil
Plan Achromatic Objective 100x,Spring,Oil
Nosepiece
Quadruple Revolving Nosepiece
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm
Stage
Double Layer Mechanical Stage,Size140x140mm,Moving Range:75mmx50mm
Condenser
Abbe N.A.1.25Condenser with Iris Diaphragm & Filter
Illumination
High Brightness Kohler Illumination, Halogen Bulb 12V/20W AC85V-230V, Adjustble Brightness
