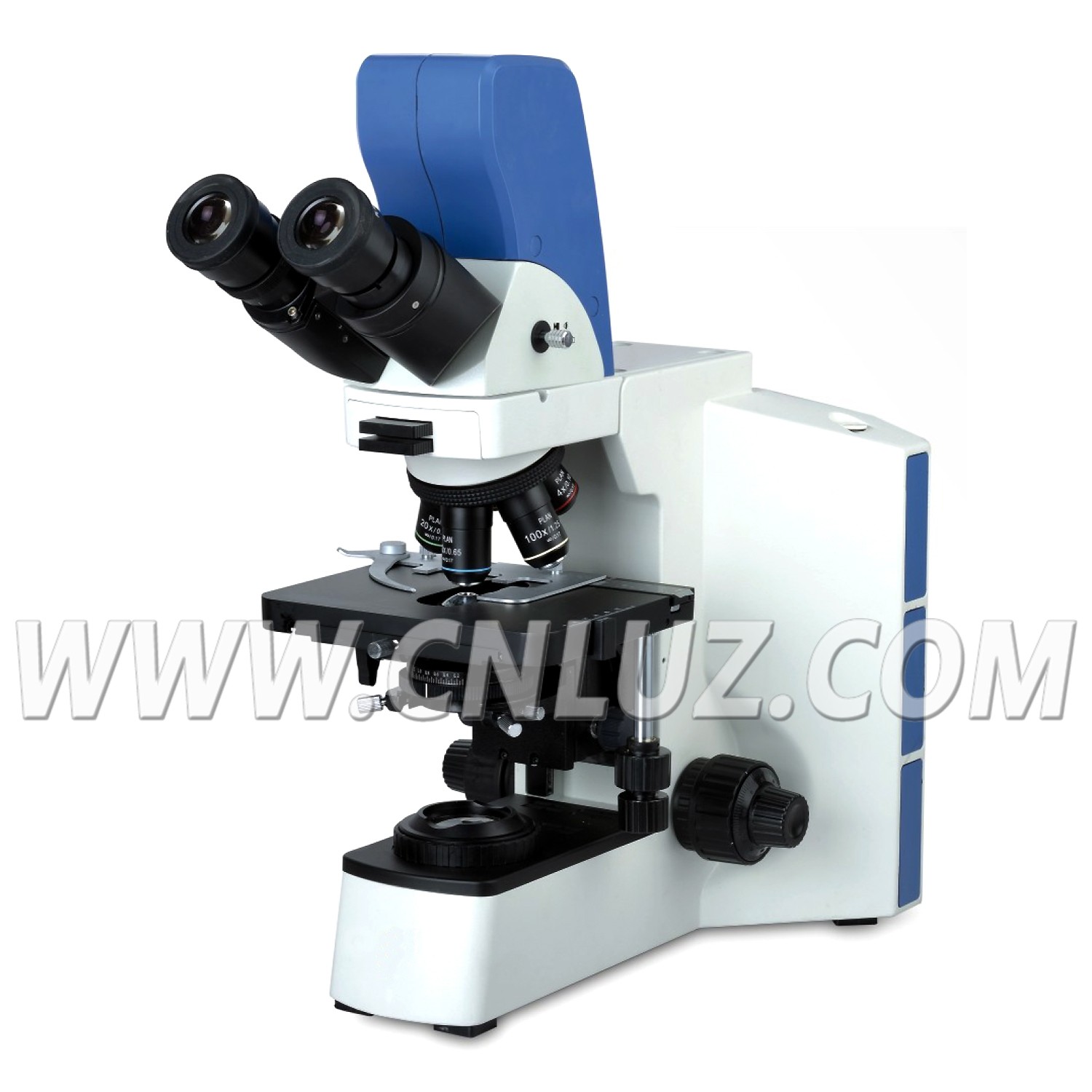

MDB.023047Biological Digital Microscope, 5M,CMOS, 40X~1000X
  • /usr/575/images/Products/Y/57518147.jpg
  • /usr/575/Picture/Y/11215.jpg
  •
  •
  • system with 5 million pixels high resolution and 1/2.5” target surface.line by line scanning,automatic exposure and auto color balance,USB2.0 output,reproduces 90% image which is in the field of view.
  • Professional image processing and analysis,includes more than 100 functions,such as chromaticity adjustment,image transforming,texture analysis,featurerecognition,etc.

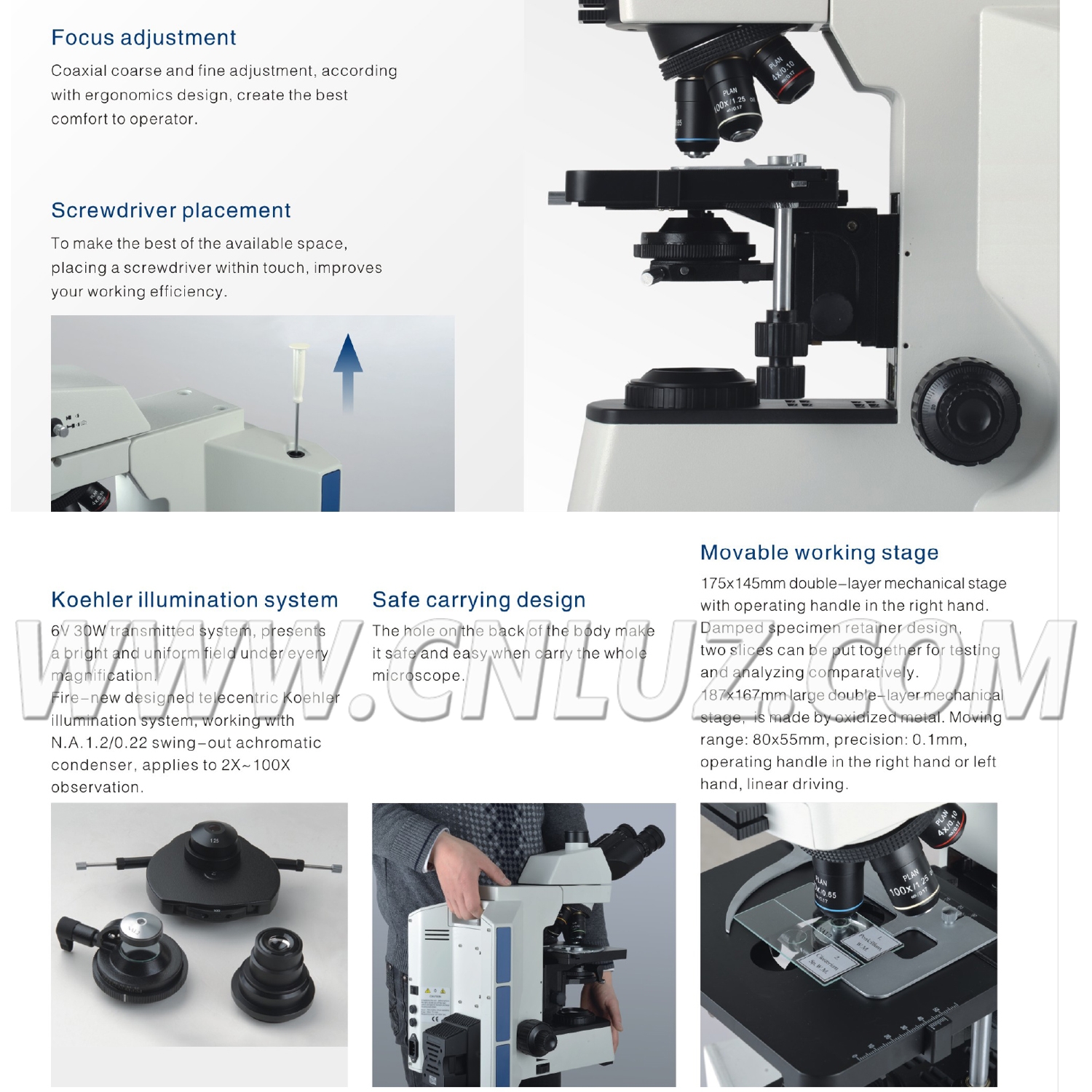

  • Infinity color corrected optical system, new upgraded Koehler illumination system, presents a clear & bright micro-image under each magnification.
  • Fire-new ergonomic design, steady system structure, easy operation, is suitable for various working environments.
  • "Building blocks" design for combining multiple functions, fluorescence, phase contrast, polarizing, dark field attachments can be assembled on the basis of bright field observation.
  • Widely apply to clinical diagnosis, teaching experiment, pathological test and other micro-fields.
Specification
MDB.023047
Optical system Infinity color corrected optical system
Digital Camera 5.0M, 1/2.5" CMOS Digital Camera Built-in, USB 2.0 Output, Repuduces 90% Of Optical View Field On Screen
Head
Compensation Binocular Head 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Diopter +/-5 Adjustable.
Eyepiece
High eye-point wide field plan eyepiece PL10x22mm, reticle can be assembled.
Objective
Infinity Plan Achromatic Objectives 4x ,WD=7.18mm
Infinity Plan Achromatic Objectives 10x,WD=4.70mm
Infinity Plan Achromatic Objectives 20x ,WD=1.75mm
Infinity Plan Achromatic Objectives 40x (Spring),WD=0.72mm
Infinity Plan Achromatic Objectives 100x (Spring, Oil ),WD=0.15m
Nosepiece
5 Holes revolving nosepiece, inward
Focusing
Coaxial Focus System With Upper Limited And Tension Adjustment; Coarse Range: 25mm; Fine Precision: 0.002mm; Focus Height Adjustable.
Stage
Double Layer Mechanical Stage 175x145mm, With Special Fabrication Processing, Anti-corrosive And Anti-friction; X/Y Moving Hand Wheel In Right Or Left Hand; Moving Range 76x50mm, Precision 0.1mm
Condenser
N.A.1.2/0.22 Swing-out Type Achromatic Condenser
Filter
Blue
Light Source

6V/30W Halogen, Pre-centered, Intensity Adjustable.


Item
Optional Accessories
Eyepiece
High Eye-point PL10x/22mm with Micrometer, Diopter Adjustable
High Eye-point PL15x/16mm
Objective

Infinity plan achromatic objectives 2x

Nosepiece 4 Holes revolving nosepiece, inward
Phase Contrast Attachement Infinity Plan Phase Contrast Objectives 10X,WD=4.70mm
Infinity Plan Phase Contrast Objectives 20X,WD=1.75mm
Infinity Plan Phase Contrast Objectives 40X,WD=0.72mm
Infinity Plan Phase Contrast Objectives 100X,WD=0.15mm
N.A.1.25 Five Holes Phase Contrast Condenser (Infinity)
Centering Telescope
Polarizing Attachment Polarizer (Diameter 45mm), Can Be Out Of Light Path.
Analyzer 360° Rrotatable,Can Be Out Of Light Path.
λ Slide
Rotatable Working Stage
Dark Field Condenser N.A.0.9 Dry
N.A.1.25 Immersion
Reflected Fluorescence System 6-Holes Disc Reflected Fluorensent Illumination
Mercury Lamp House 100W/DC
Mercury Lamp Power 100V-240V AC With Indicator Display
Eye Protecting Board
HBO Ultra Hi-Voltage Spherical Mercury Lamp 100W/DC OSRAM
Fluorescence Filter System B
Fluorescence Filter System G
Fluorescence Filter System UV
Fluorescence Filter System V
Filter Yellow Filter, Dia.45mm
Green Filter, Dia.45mm
Netural Filter, Dia.45mm
Attenuation Plate, Transmission 25%
CCD Adapter 1x C-Mount, Focus Adjustable
0.50x, For 1/2” C-Mount, Focus Adjustable
0.67x, For 2/3” C-Mount, Focus Adjustable
