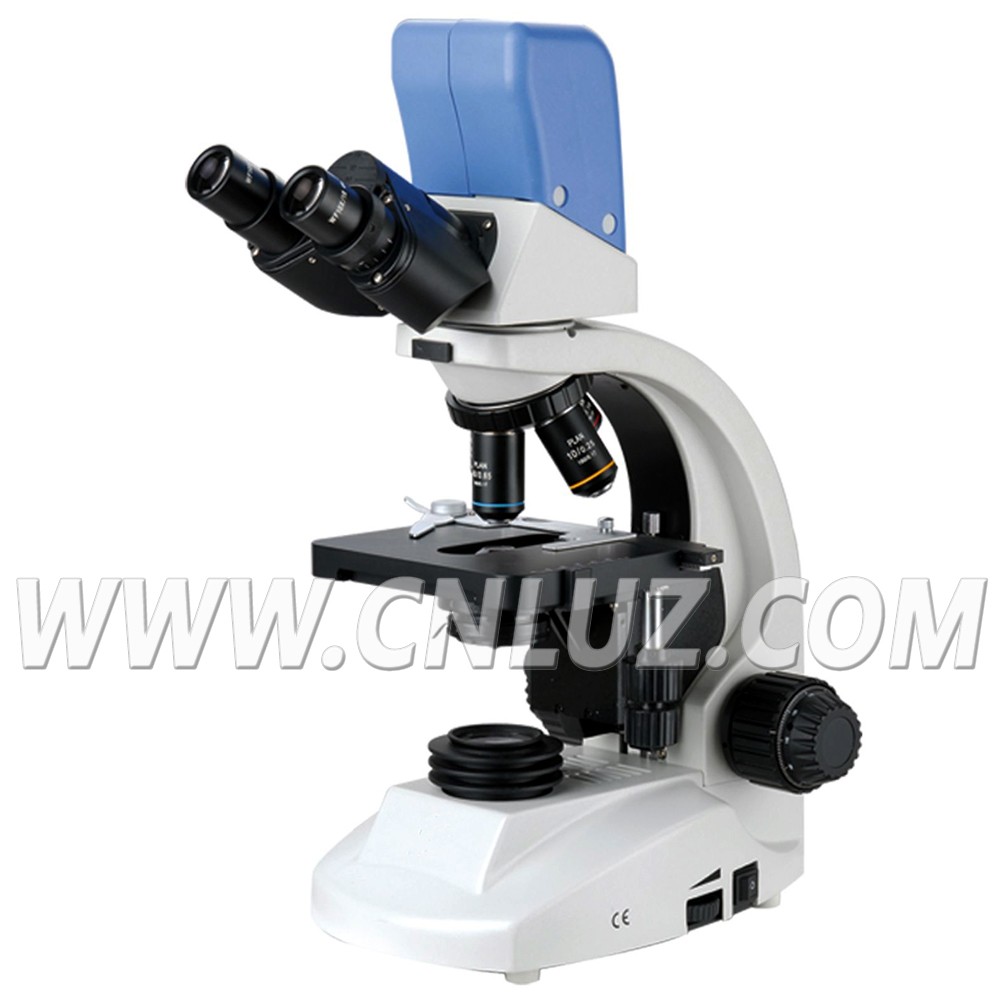

MDB.023048Biological Digital Microscope, 3M,CMOS, 40X~1000X
  • /usr/575/images/Products/Y/57518156.jpg
  •
  •
  •
  • Designed to be used in teaching applications,lab,demical, and sientific research
  • 3.0M Buitl-in Digital Camera, USB 2.0 Output
  • Infintiy Optical System
  • Popularly and newly microscope body design
Specification
MDB.023048
Digital Camera
3.0M Buitl-in Digital Camera, USB 2.0, Automatic Exposure, Automatic White Balance, Display 90% Image From Field of View. Line By Line Scan.
Head
Compensation Free Binocular Head, 30° Inclined,360° Rotatable,+/-5° Diopter Adjustable
Eyepiece

Wide Field WF10x/18mm, High Eyepoint

Objective
Achromatic Objective 4x/0.10
Achromatic Objective 10x/0.25
Achromatic Objective 40xs/0.65
Achromatic Objective 100xs/1.25 Oil
Nosepiece
Quadruple Nosepiece
Focusing
Low Position Coaxial Coarse & Fine Focusing. Coarse Focusing Range 22mm, Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit
Stage
Double Layer Mechanical Stage, 132*140mm, Mvoing Range 50*76mm, Precision 0.1mm
Condenser
N.A.1.2/0.24 Swing Out Abbe Condenser, Iris Diaphargm, With Filter Holder
Filter
Blue, Dia.32mm
Light Source
Khohler Illumination, 6V/20W Halogen Lamp
Power
90~240V Wide Range Voltage
