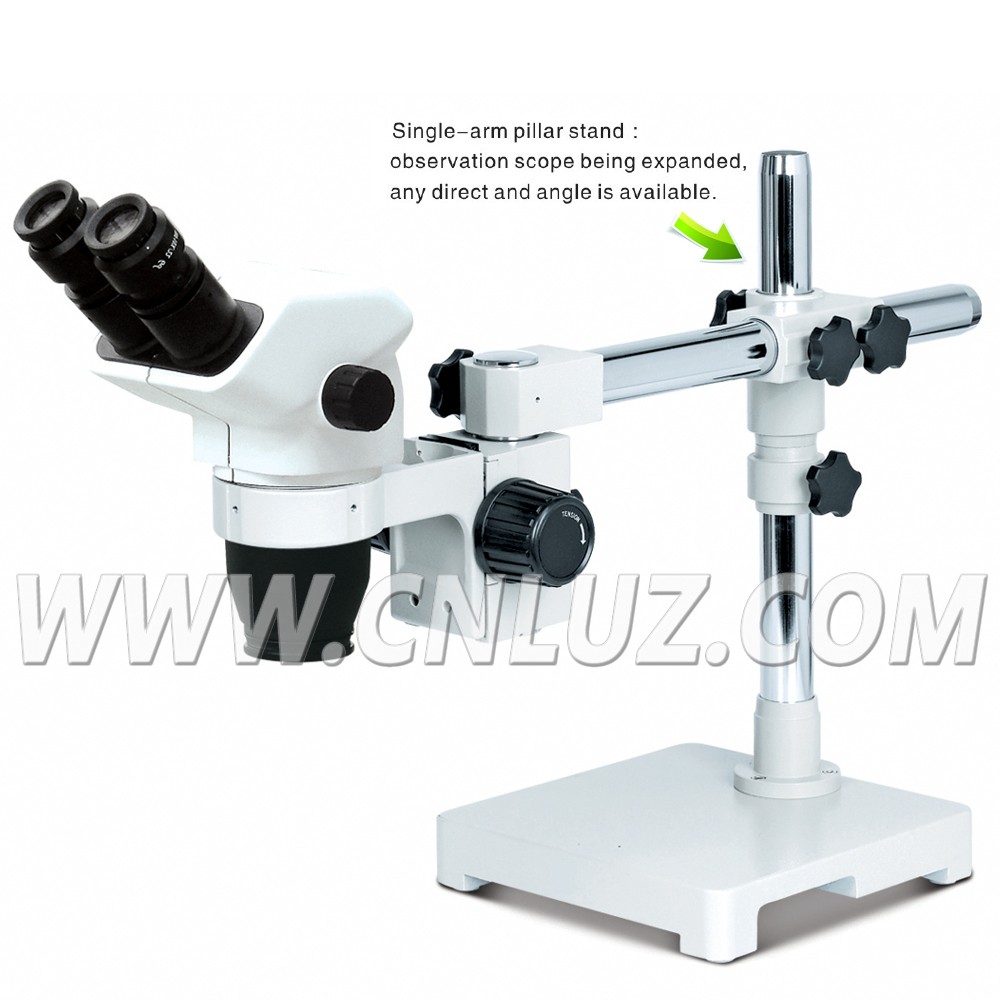

MSZ.023020Zoom Stereo Microscope,6.7~45X
  • /usr/575/images/Products/Y/57518046.jpg
  •
  •
  •
  • Fully Coated Optical System, Sharp & Clear Image
  • Total Optical Magnification 6.7~45x
  • 0.67~4.5x Zoom Lens, with WF10x/22mm Eyepiece
  • Universal Pole Stand To Observe Specimen From Any Direction or Angle
  • No Light Source

Specification
MSZ.023020
Magnification
6.7~45x, Up to 2~225x with Auxiliary Lens
Head
Brinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm
Eyepiece
WF10x/22mm, Both with Eye-cup
Zoom Range
0.67~4.5x
Zoom Ratio
1:6.5
Working Distance
100mm, With Standard 1x Lens. Up to 26~287mm With Auxiliary Lens
Stand
Universal Pole Stand, To Observe Specimen From Any Direction or Angle.
Vertical Post Height 380mm, Pillar Size Dia.32mm,
Focusing Post Height 104mm, Pillar Size Dia.32mm
Horizontal Adjustment Range 235mm
Stage Size 230*230*40mm
Illumination
No Light Source

Item
Optional Accessories
Eyepiece


WF15x/15mm

WF20x/10mm

WF25x/9mm
Auxiliary Lens 0.3x, W.D. 287mm
0.4x, W.D. 217mm
0.5x, W.D. 177mm
0.75x, W.D. 117mm
1.5x, W.D. 47mm
2.0x, W.D. 26mm
