Applications: assembly line piece-line detection, license plate recognition capture, microscopic image acquisition and many other fields.
|
Specification
|
MAC.031005
|
|
Senser
|
1/2.5" SONY Color CMOS Sensor |
|
Pixels
|
5.0M
|
|
Max Resolution
|
2592*1944 |
|
Pixel Size
|
2.2μm×2.2μm
|
|
Max FPS
|
5fps (2592*1944)
|
|
Output Digi
|
8 Bits
|
|
SNR
|
40.5dB
|
|
Dynamic Range
|
66.5dB
|
|
Sensititive (550nm)
|
0.53V/lux-sec
|
|
Output Data Interface
|
USB 2.0 |
|
Power Supply
|
USB Power Supply
|
|
Lens Mount
|
C Mount
|
|
System
|
Windows 2000, WindowsXP,Windows 7,Windows Vista |
|
Software
|
Support DirectShow , Twain and LAbview. Including OCX, SDK and Measuring Software
|
|
Other Function
|
Auto/Manual Black Balance |

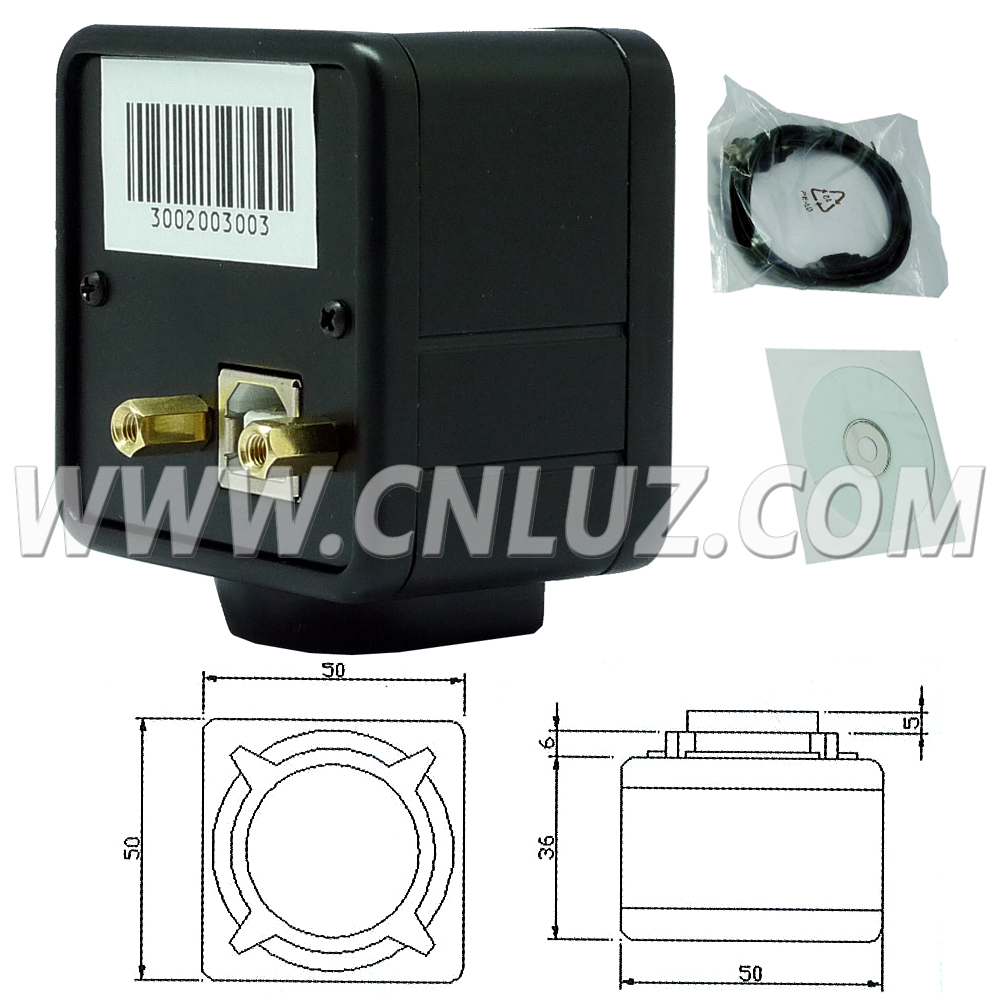

| Product Size |
50*50*46mm
|
