MAC.029008Digital Camera,14M,CMOS,USB2.0
  • /usr/575/images/Products/Y/57518321.jpg
  •
  •
  •
  • High-quality CMOS image sensor
  • USB2.0 interface, support hot swappable
  • Support image format:BMP/JPG
  • Support ROI function, can set the interest window, small format can obtain higher frame rate
  • Support Directshow interface, can be integrated into the third party software, such as Halconlabviewmatlab etc
  • App software operation interface support conversion in both English and Chinese, can save the image adjusting parameter and a variety of formats, is authorized to use the measuring function

Specification
MAC.029008
Sensor MICRON CMOS,MT9F001
Color/monochrome Color
Sensor Size 1/2.5"
Effective Pixels 14MP
Scan Mode Progressive
Pixel Size 1.4umX1.4um
Resolution(HXV) 4384X3288
Frame Rate 1.5fps (4384X3288)
Shutter Rolling shutter
Spectrum Range 390-750nm
S/N Ratio 35.5dB
Dynamic Range 55dB

Sensitivity

4.8V/Lux-sec@550nm
Exposure Control Auto / Manual
Exposure Time (s) 0.017~2293.725ms
White Balance Auto / Manual
Parameter
Image size、bright、gain、exposure、ROI、GAMMA、RGB
Data Interface USB2.0 480Mb/s
USB Power Supply USB2.0
Lens Interface C/CS Mount

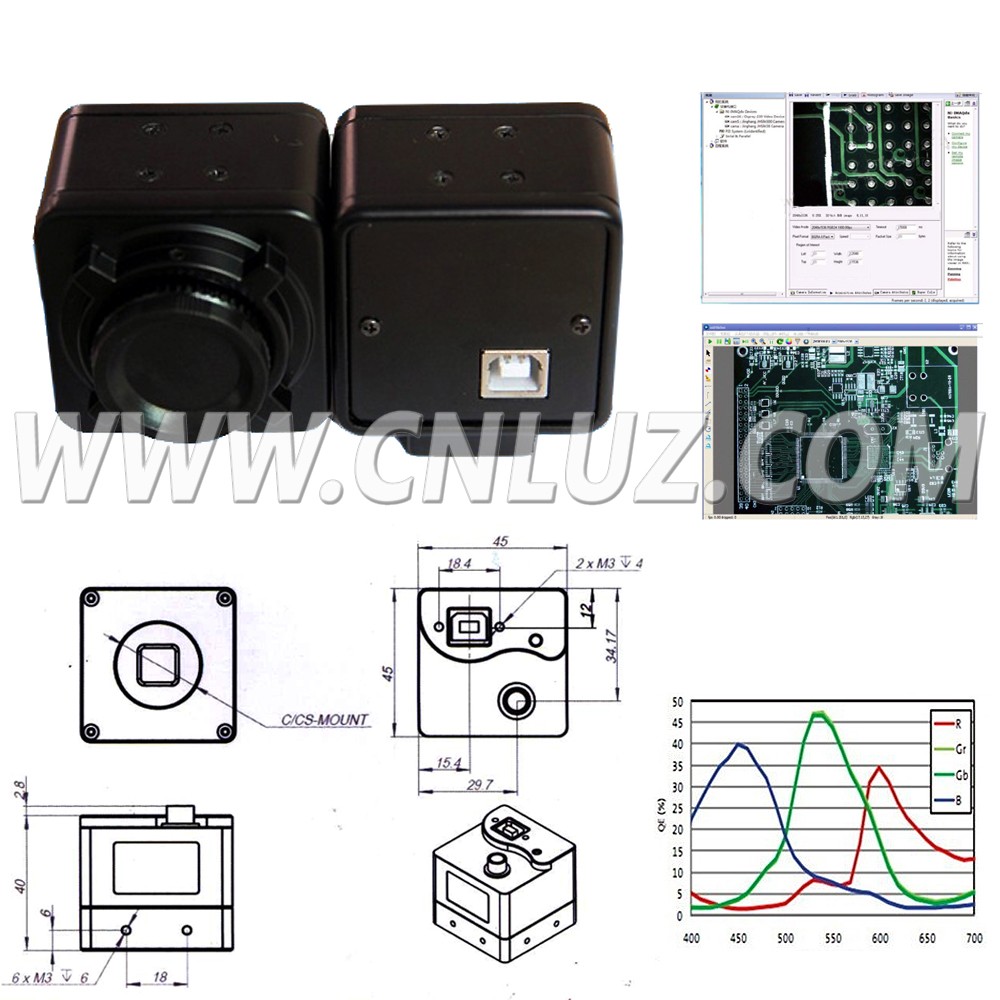

Dimension 50.4X50.4X41.4mm
Operating System Windows XP / Windows 7(32bit/64bit)
