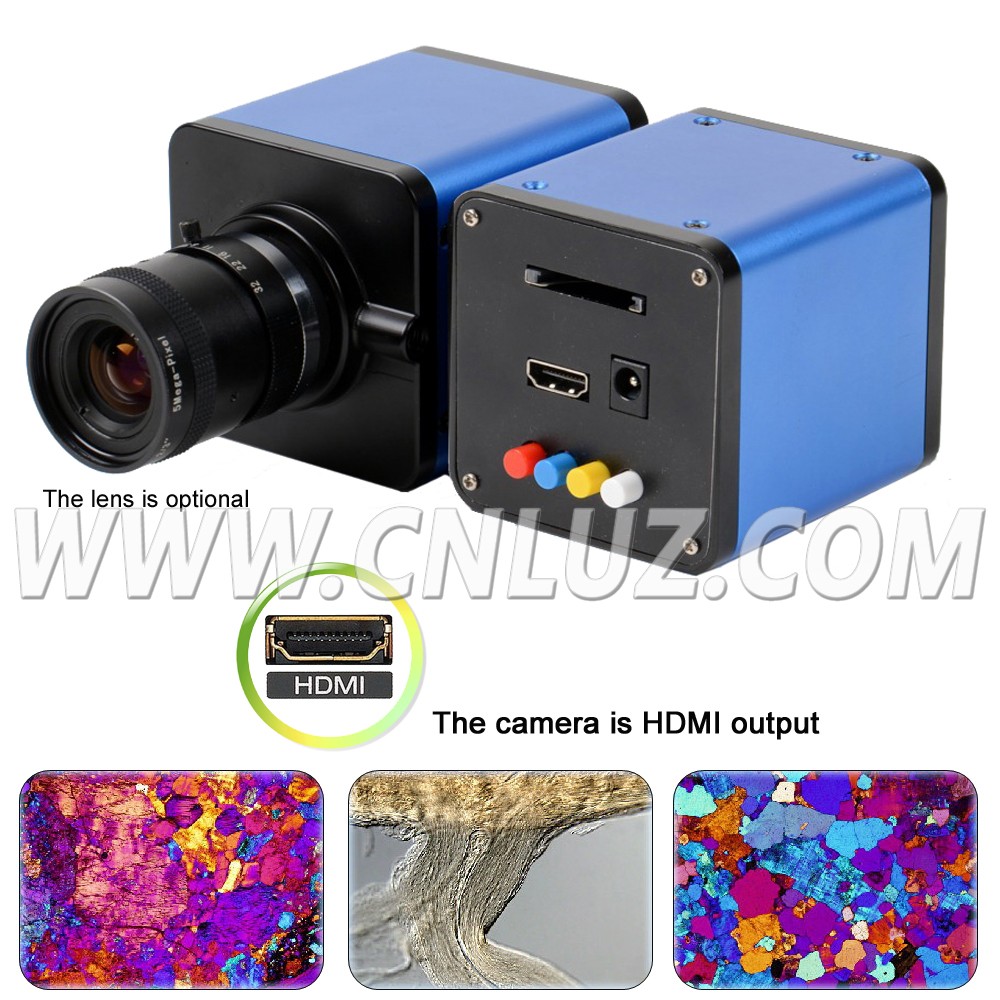

MAC.002011Digital Camera,5M,CMOS,720P,HDMI
  • /usr/575/images/Products/Y/57518343.jpg
  •
  •
  •
  • HDMI Output
  • 1/2.5’’ CMOS sensor,color
  • 5M pixels,720P
  • Standard C-Mount
  • Support SD card storage
  • >30fps,high frame rate
Specification
MAC.002011
Image Pickup Device Aptina MT9P03 CMOS(Color)
Sensor Size (Diagonal) 1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
Pixel Size 2.2μm x 2.2μm
Max. Resolution 1280 x 720 (16:9)
Scan Mode Progressive
Frame Rate 30fps @1280 x 960
Spectral Range 380-650nm (with IR-filter)
A/D Converter 12-bit Parallel, 8-bit R.G.B
Dynamic Range 70.1dB
SN Ratio 38.1dB
G Sensitivity 1.4v/lux-sec(550nm)
Binning 1 x 1
Exposure 0.21~33ms,Auto & Manual
White balance Auto / Manual
Color Rendering Technique Ultra Fine Color Engine
Cooling System* Natural
INTERFACE
  • 1X HDMI Output Port
  • 1X SD Card Slot
  • 1X Power Input Slot
  • 1X Remote Switch Slot
Width X Depth X Height 68mm (2.67") X 68mm (2.67") X 92mm (3.62")
Power Supply DC 5V over PC USB Port
Shipping Weight 0.25 kg (0.55lbs)
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH

RED Button

Cursor ON/OFF

BLUE Button

Save Image to SD Card

YELLOW Button

AEWB ON/OFF

WHITE Button

VIDEO Stream/Freeze


Item
Optional Accessories
Cable HDMI Cable
Memory Card SD Card
Remote Image Save Switch 2.5mm Headphone Jack Remote Image Save Switch
