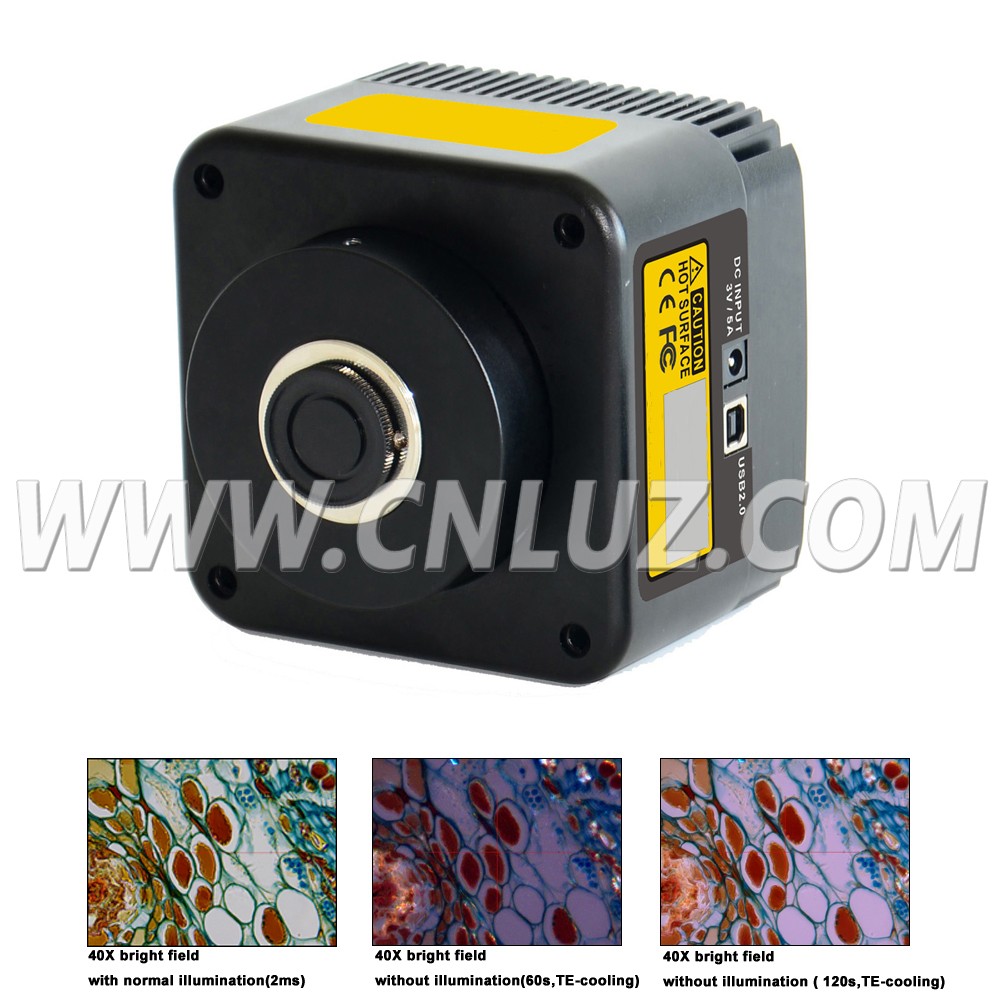

MAC.002016Digital Camera, 1.4M, USB2.0, Cooled CCD
  • /usr/575/images/Products/Y/57518824.jpg
  • /usr/575/Picture/Y/11539.jpg
  •
  •
  • C-Mount camera with SONY EXview or Super HAD CCD sensor
  • Well-designed high-performance TE-cooling with heat pipe heat sink structure
  • Up to 20 degrees temperature drop ensures high quality image with lower noise
  • Supporting up to 4'long time exposure
  • USB2.0 interface ensuring high speed data transmission
  • Ultra-Fine color engine with perfect color reproduction capability
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/OSX multiple platform SDK
  • Native C/C++, C#, DirectShow, Twain Control API
Specification
MAC.002016-23C
MAC.002016-23M
MAC.002016-12C
MAC.002016-12M
Sensor Resoution 1.4M,1360x1024
Sensor Type Color CCD,
ICX285AQ
Mono CCD,
ICX285AL
Color CCD,
ICX205AK
Mono CCD,
ICX205AL
Sensor Size 2/3"(10.2x8.3) 2/3"(10.2x8.3) 1/2"(7.60x6.20) 1/2"(7.60x6.20)
Pixel Size 6.45x6.45um 6.45x6.45um 4.65x4.65um 4.65x4.65um
Frame Rate 15@1360x1024
Binning 1X1
Exposure 0.12ms~240s
Spectral Range 380-650nm (with IR-filter)
White Balance ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique Ultra Fine Color Engine
Capture/Control API Native C/C++, C#, Directshow, Twain, Labview
Recording System Still Picture and Movie
Cooling System* TE-Cooled CCD - 20 °C below Ambient Temperature
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port
Lens Mount C-Mount
Operating System Support Microsoft Windows XP/ Vista / 7 /8 (32 & 64 bit)
OS X (Mac OS X), Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB port: USB2.0 High-speed Port
CD-ROM
Display: 17" or Larger
