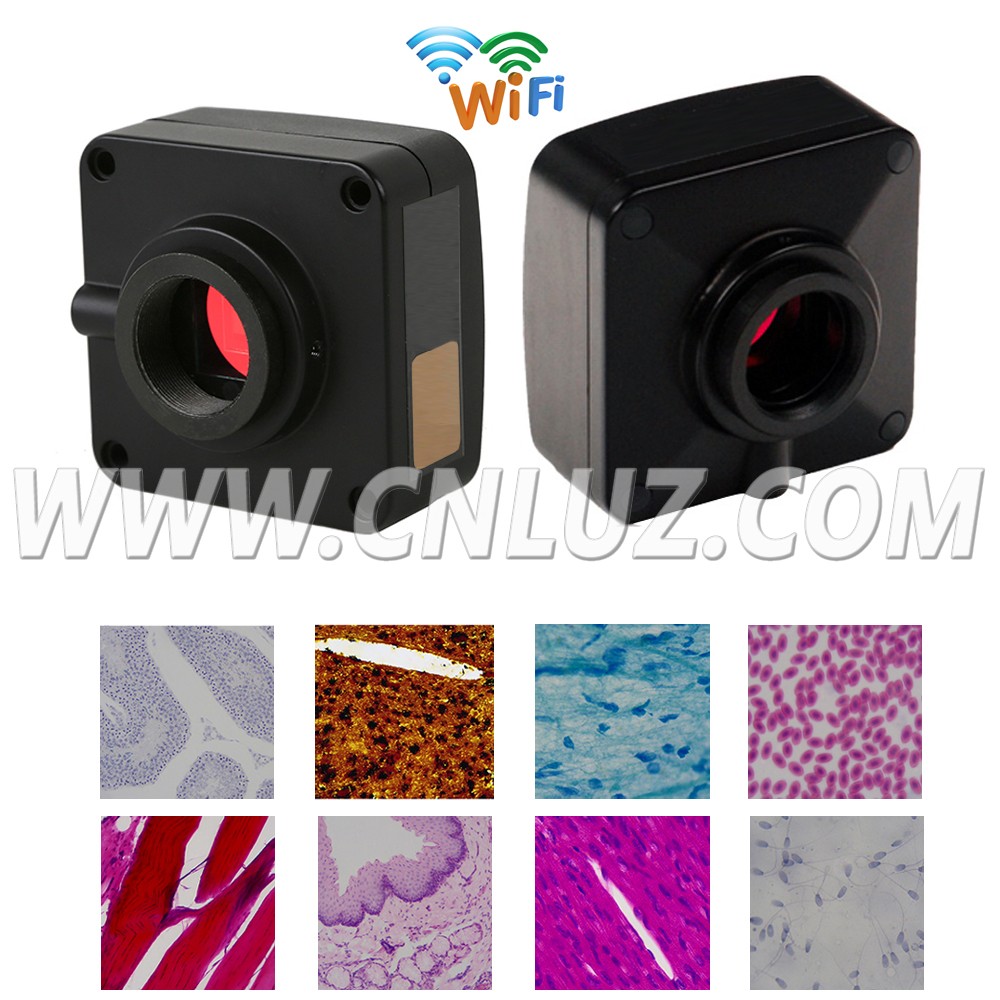

MAC.002018WIFI Digital Camera, CMOS, 1080P/720P/0.3M
  • /usr/575/images/Products/Y/57519191.jpg
  • /usr/575/Picture/Y/11571.jpg
  •
  •
  • Standard C-Mount camera with Aptina CMOS sensor
  • Sends H.264 encodec high-resolution images from a microscope to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems
  • Streams images to several devices simultaneously
  • Integrated zinc aluminum alloy housing
  • Ultra-Fine color engine with perfect color reproduction capability
  • With advanced video & image processing application software
  • Providing Windows/Linux/OSX multiple platform SDK
  • Native C/C++, C#, DirectShow, Twain Control API
Specification
MAC.002018-A
MAC.002018-B
MAC.002018-C
MAC.002018-D
Resolution
2M, 1920x1080
0.8M, 1280x720
0.3M, 640x480
Sensor
MT9P001(C),1/2.5"(5.70x4.28)
MT9V011(C),
1/4"(3.58x2.69)
Pixel Size
2.2x2.2um
5.6x5.6um
Frame Rate
15fps@1080P
30fps@720P
10fps@720P
25fps@640x480
G Sensitivity
1.0 V/lux-sec
1.9V/lux-sec
Dynamic Range
61dB
60dB
SN Ratio
43dB
45dB
Binning
2x2
1x1
Exposure
0.21ms~200ms
Auto
Spectral Range 380-650nm (with IR-filter)
White Balance White Balance /Manual Temp Tint Adjustment
Color Rendering Technique Ultra Fine Color Engine(Embeded on Board)
Capture/Control API Native C/C++, C# for Windows Operating System
Recording System Still Picture and Movie
Cooling System* Natural
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply USB Charger or Over PC USB Port
Operating System Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit)
IOS IPAD or IPhone, Android PAD of Phone
PC Requirements
  • CPU: Equal to Intel Core2 2.8GHz or Higher
  • Memory: 2GB or More
  • WIFI Adaptor with DHCP Enabled
  • Display: 17" or Larger
  • Ability to Play 0.35M MJPEG Format Video Smoothly
  • CD-ROM

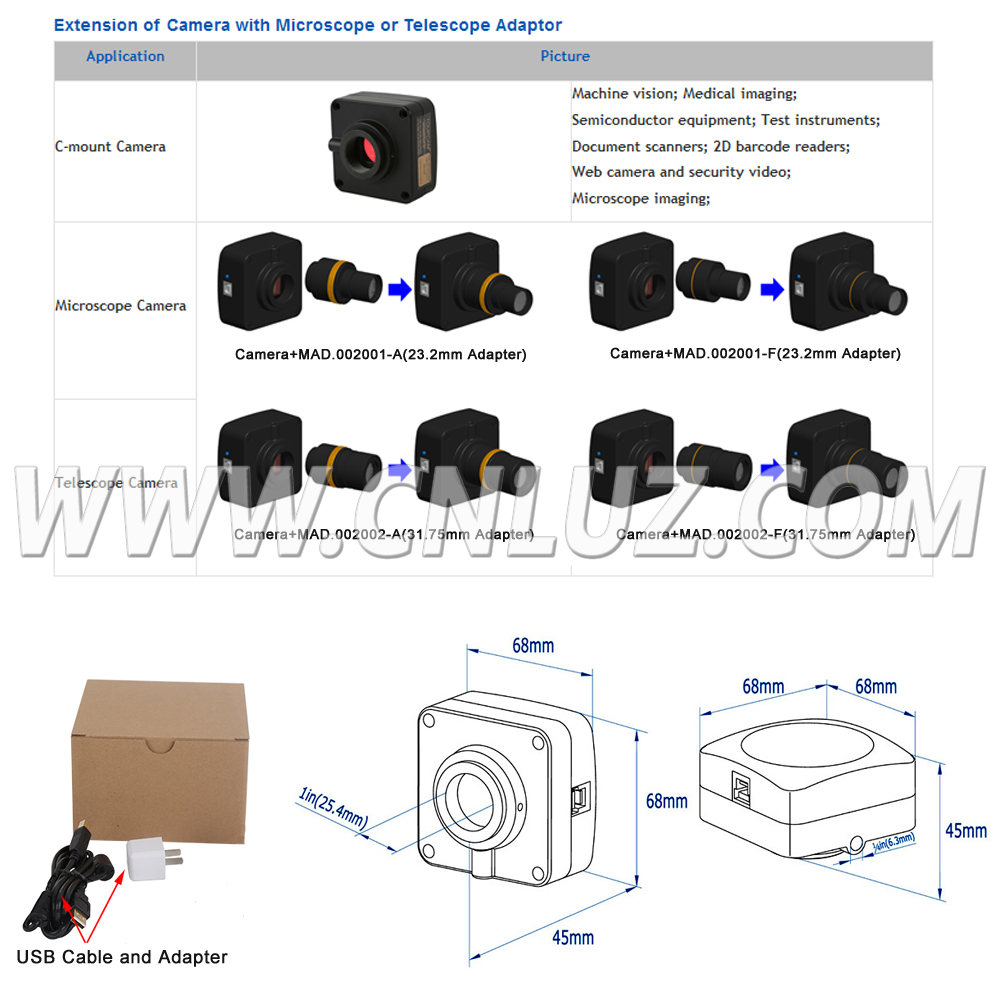

Item
Optional Accessories
Microscope Adapter

Dia 23.2mm

  • MAD.002001-37F
  • MAD.002001-50F
  • MAD.002001-75F
  • MAD.002001-37A
  • MAD.002001-50A
  • MAD.002001-75A
Telescope Adapter

Dia 31.75mm

  • MAD.002002-37F
  • MAD.002002-50F
  • MAD.002002-75F
  • MAD.002001-37A
  • MAD.002001-50A
  • MAD.002001-75A
Adaptor Ring
(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece
(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

Calibration Lit

X=0.01mm/100Div
X,Y=0.01mm/100Div
X=0.01mm/100Div., 0.10mm/100Div
