MAC.002019Digital Camera, 1.2M/3.1M/5.1M/8.5M/10M/14M, USB3.0
  • /usr/575/images/Products/Y/57519303.jpg
  • /usr/575/Picture/Y/11572.jpg
  •
  •

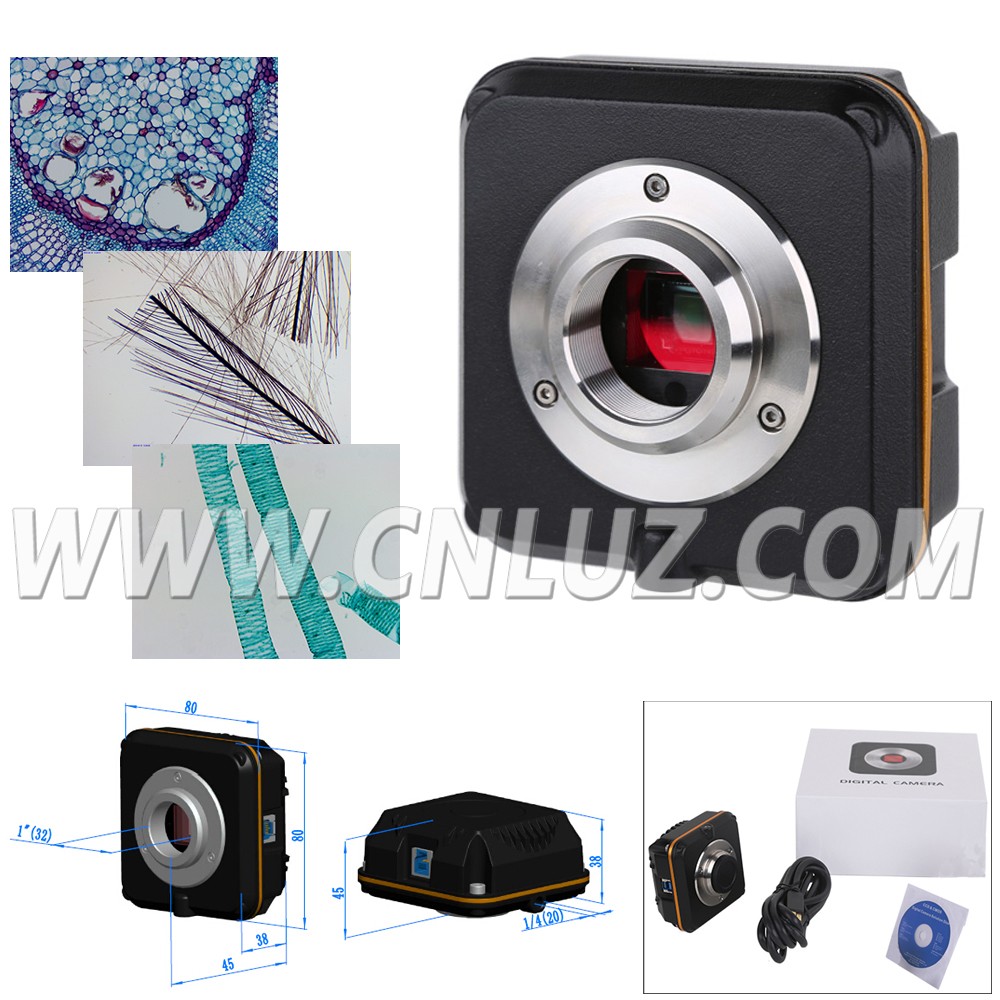

C-Mount USB3.0 CMOS Camera

  • Standard C-Mount camera with Aptina CMOS sensor
  • With hardware resolution among 1.2M to 14M
  • On-board memory for perfect synchronization,higher frame rate and stable performance
  • High performance cooling structure, ensures low image noise
  • USB3.0 5 Gbps interface ensuring high frame rate
  • Ultra-Fine color engine with perfect color reproduction capability
  • With advanced video & image processing application
  • Providing Windows/Linux/OSX multiple platform SDK
  • Native C/C++, C#, DirectShow, Twain Control API
Specification
MAC.002019

1.2M
3.1M
5.1M
8.5M
10M
14M
Resolution
1280x960
2048x1534
2560x1922
3328x2548
3584x2746
4096x3286
Sensor
1/3"
(4.8x3.6)

1/3"
(4.505x3.38)

1/2.5"
(5.7x4.28)

1/2.5"
(5.557x4.255)

1/2.3"
(6.44x4.616)

1/2.3"
(6.451x4.603)

Pixel Size (um)
3.75x3.75

2.2x2.2

2.2x2.2

1.67x1.67

1.67x1.67

1.4x1.4

Frame Rate
45fps
@1280x960
55fps
@640x480

27.3fps
@2048x1534
53.3fps
@1024x770

14.2fps
@2560x1922
38.3fps
@1280x960
101.2fps
@640x480

8.3fps
@3328x2548
26.2fps
@1664x1272

7.2fps
@3584x2746
24.5fps
@1792x1372

6.2fps
@4096x3286
20.8fps
@2048x1644
53.3fps
@1024x822

Binning
1x1,2x2

1x1,2x2

1x1,2x2,4x4

1x1,2x2,4x4

1x1,2x2,4x4

1x1,2x2,4x4

Exposure(ms)
0.1~20000

0.1~2000

0.05~2000

0.1~2000

0.38~2000

0.4~2000

White Balance

ROI White Balance/ Manual Temp-Tint Adjustment

Color Rendering Technique

Ultra Fine Color Engine

Capture/Control API

Native C/C++, C#, Directshow, Twain, Labview

Recording System

Still Picture and Movie

Interface USB3.0

Cooling System*

Natural

Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply

DC 5V over PC USB Port

Operating System

Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit)
OS X (Mac OS X), Linux

PC Requirements
  • CPU: Equal to Intel Core2 2.8GHz or Higher
  • Memory: 2GB or More
  • WIFI Adaptor with DHCP Enabled
  • Display: 17" or Larger
  • Ability to Play 0.35M MJPEG Format Video Smoothly
  • CD-ROM

Item

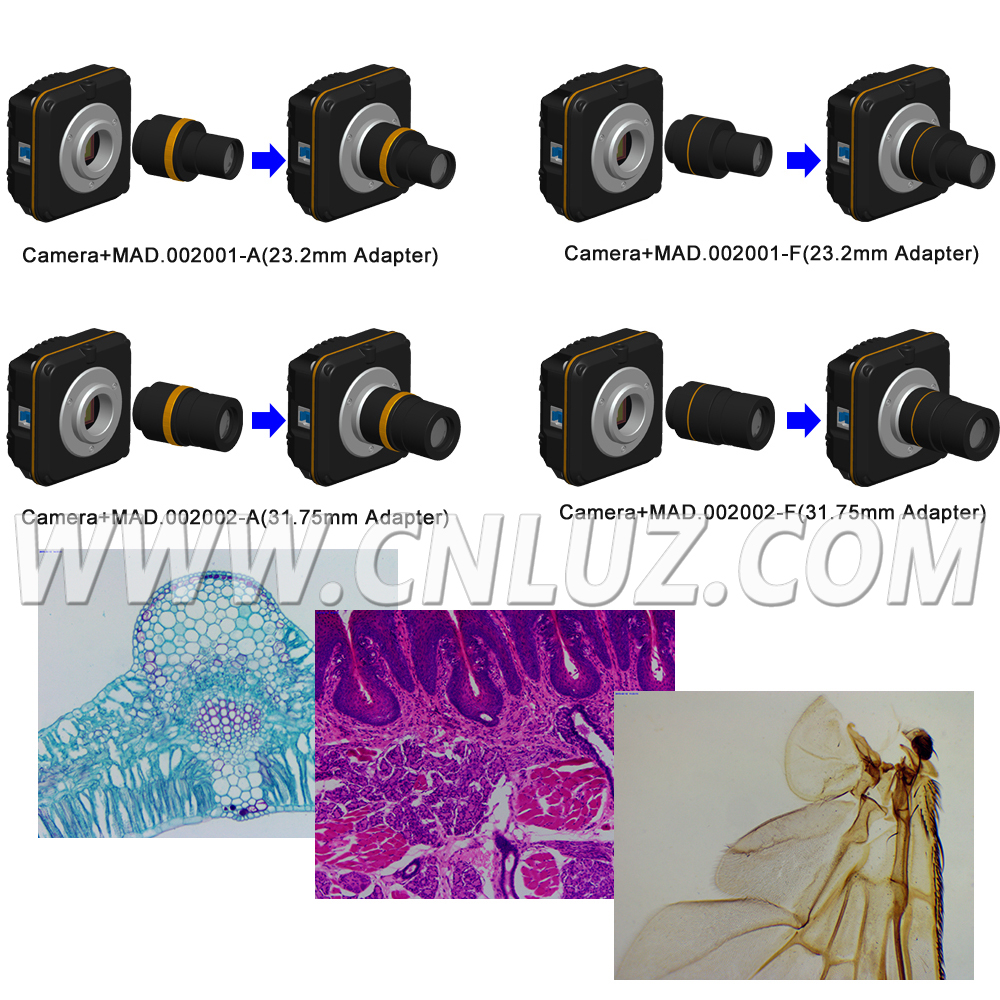

Optional Accessories
Microscope Adapter

Dia 23.2mm

  • MAD.002001-37F
  • MAD.002001-50F
  • MAD.002001-75F
  • MAD.002001-37A
  • MAD.002001-50A
  • MAD.002001-75A
Telescope Adapter

Dia 31.75mm

  • MAD.002002-37F
  • MAD.002002-50F
  • MAD.002002-75F
  • MAD.002001-37A
  • MAD.002001-50A
  • MAD.002001-75A
Adaptor Ring
(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece
(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

Calibration Lit

X=0.01mm/100Div
X,Y=0.01mm/100Div
X=0.01mm/100Div., 0.10mm/100Div
