MAC.002023Digital Camera, 3.1M/5.1M/8.5M/10M/14M/16M, USB3.0
  • /usr/575/images/Products/Y/57523453.jpg
  • /usr/575/Picture/Y/11663.jpg
  •
  •

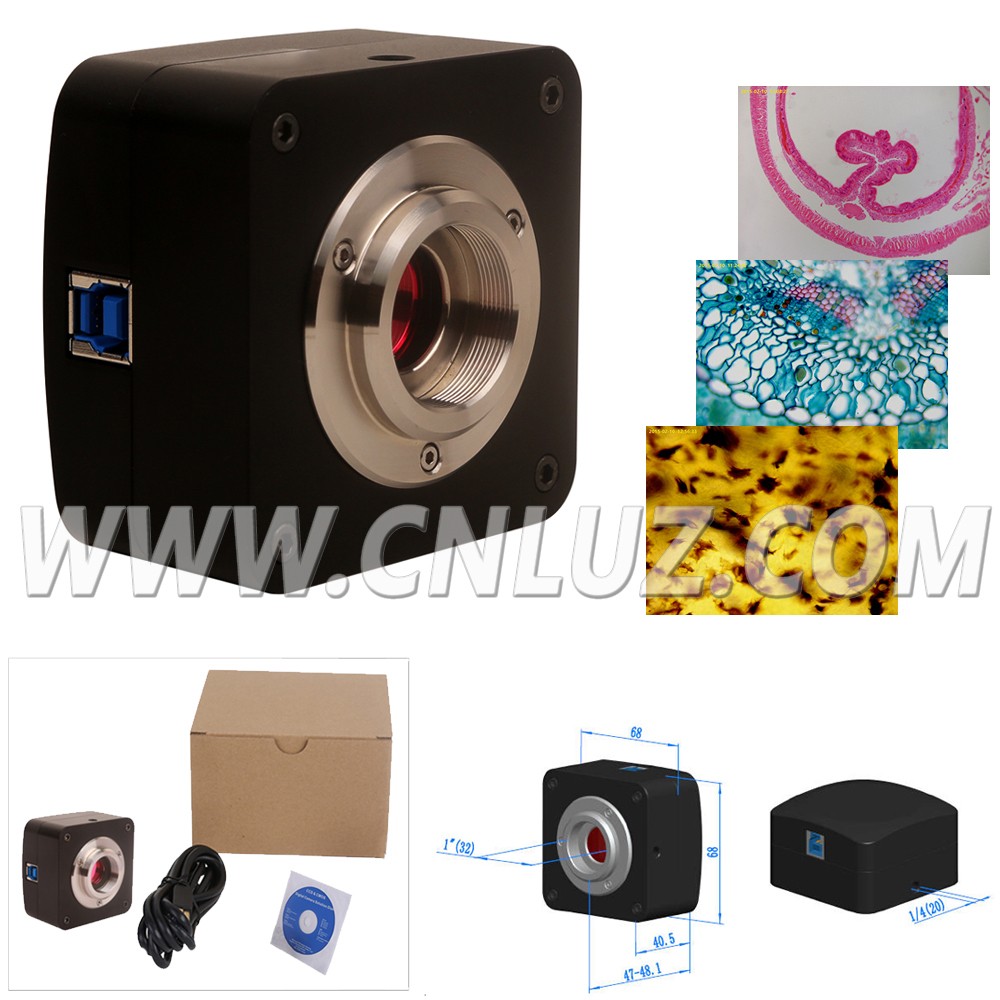

C-Mount USB3.0 CMOS Camera

  • Standard C-Mount camera with SONY CMOS sensor
  • Real-time 8/12/14/16bit depth switch(depending on sensor);
  • Super high sensitivity up to 1120mV(IMX185);
  • Ultra low noise and low power dissipation by using column-parallel A/D conversion;
  • With hardware resolution among 3.1M to 16M;
  • Rolling Shutter or Global Shutter;
  • Standard C-Mount camera;
  • CNC aluminum alloy housing;
  • USB3.0 5 Gbps interface ensuring high frame rates;
  • ProvidingWindows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#/VB.Net, DirectShow, Twain, LabView
Specification
MAC.002023

3.1M
5.1M
8.5M
10M
14M
Resolution 2048x1534 2560x1922 3328x2548 3584x2746 4096x3286
Sensor 1/3“ (4.51x3.38) 1/2.5“ (5.70x4.28) 1/2.4“(5.56x4.26) 1/2.3“(5.98x4.58)) 1/2.3“(5.73x4.60)
Pixel Size (um) 2.2x2.2 2.2x2.2 1.67x1.67 1.67x1.67 1.4x1.4
Frame Rate 27.3@2048x1534
53.3@1024x770
14.2@2560x1922
38.3@1280x960
101.2@640x480
8.3@3328x2548
26.2@1664x1272
7.2@3584x2746
24.5@1792x1372
6.2@4096x3286
20.8@2048x1644
53.3@1024x822
Binning 1x1,2x2 1x1,2x2,4x4 1x1,2x2,4x4 1x1,2x2,4x4 1x1,2x2,4x4
Exposure(ms) 0.1~2000 0.1~2000 0.1~2000 0.4~2000 0.4~2000

16M
16MPB
16MMB

Resolution 4632x3488 4648x3506 4648x3506
Sensor 1/2.33“(6.18x4.66) 4/3“ (17.60x13.30) 4/3“ (17.60x13.30)
Pixel Size (um) 1.335x1.335 3.8x3.8 3.8x3.8
Frame Rate 6.0@4632x3488
15.0@2320x1740
26.0@1536x1160
6.0@4648x3506
15.0@2304x1750
30.0@1536x1168
22@4648x3506
43@2304x1750
49@1536x1168

Binning 1x1,2x2,3x3 1x1,2x2,3x3 1x1,2x2,3x3
Exposure(ms) 0.2~2000 0.06~15000 0.06~15000

Spectral Range 380-650nm (with IR-cut Filter)
White Balance ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique Ultra-FineTMColor Engine/NA for Monochromatic Sensor
Capture/Control API Native C/C++, C#/VB.NET, DirectShow, Twain and Labview
Recording System Still Picture and Movie
Cooling System* Natural
Interface USB3.0
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port
Operating System Microsoft Windows \XP/ Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X) Linux

PC Requirements

  • CPU: Equal to Intel Core2 2.8GHz or Higher
  • Memory: 2GB or More
  • USB Port:USB3..0 High-speed Port
  • Display: 17" or Larger
  • CD-ROM

Item
Optional Accessories

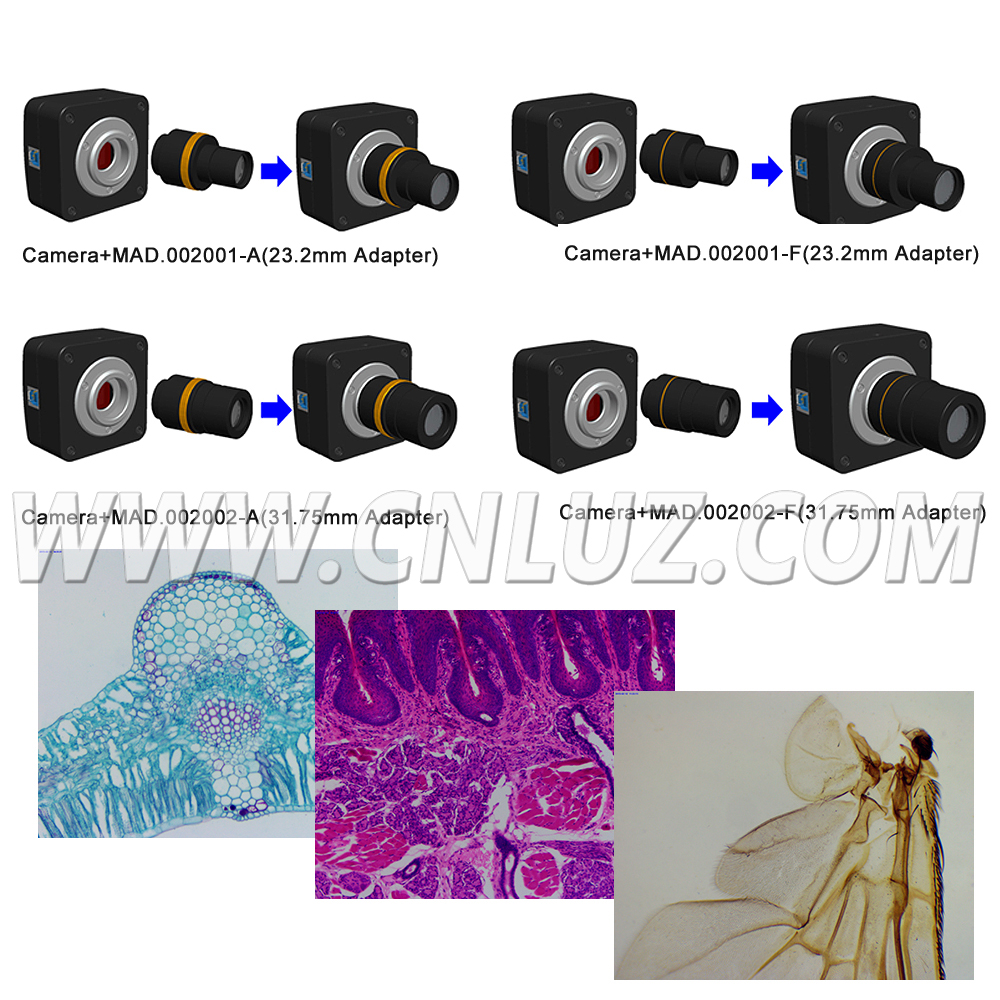

Microscope Adapter

Dia 23.2mm

  • MAD.002001-37F
  • MAD.002001-50F
  • MAD.002001-75F
  • MAD.002001-37A
  • MAD.002001-50A
  • MAD.002001-75A
Telescope Adapter

Dia 31.75mm

  • MAD.002002-37F
  • MAD.002002-50F
  • MAD.002002-75F
  • MAD.002001-37A
  • MAD.002001-50A
  • MAD.002001-75A
Adaptor Ring
(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece
(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

Calibration Lit

X=0.01mm/100Div
X,Y=0.01mm/100Div
X=0.01mm/100Div., 0.10mm/100Div
