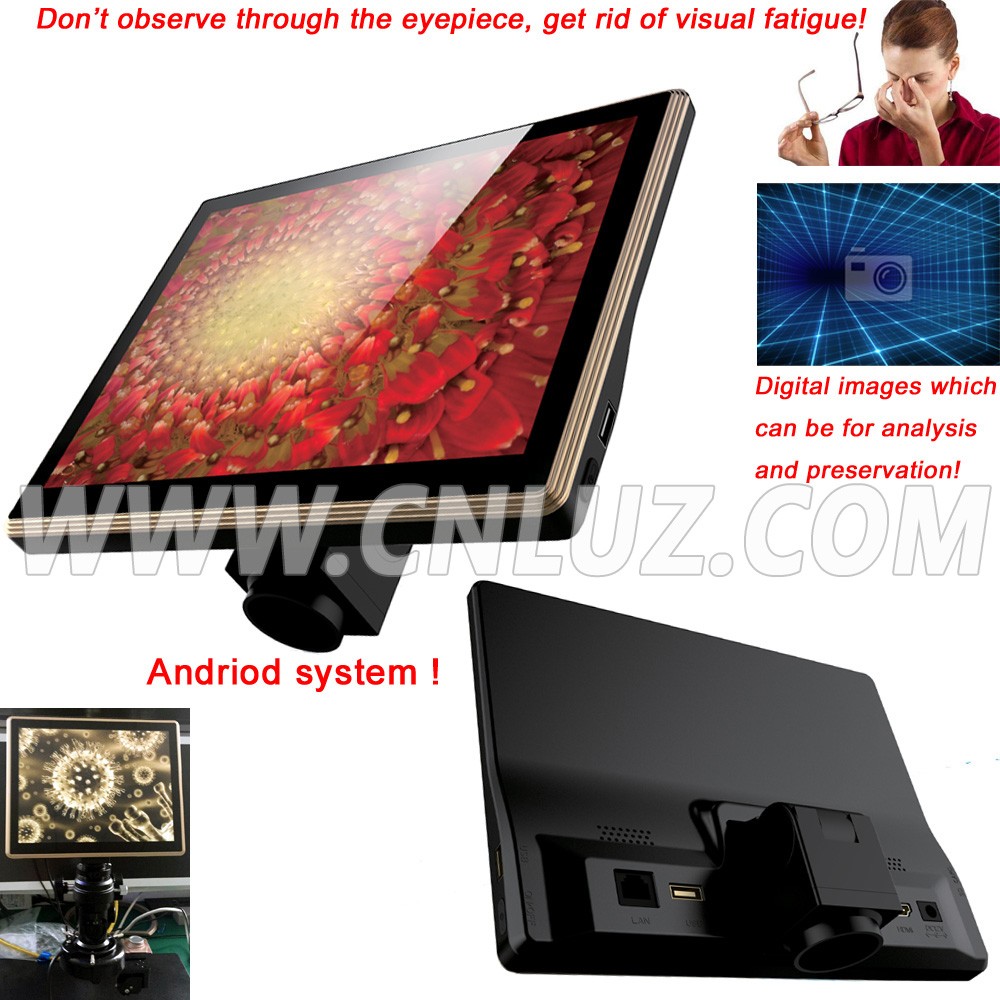

MAT.041007Digital LCD PAD, Andriod, 9.7'' retina, 5M HDMI
  • /usr/575/images/Products/Y/57519728.jpg
  • The device can be widely used in scientific research, industry, teaching and so on,powerful performance, reliable quality
    9.7 Inch (Diagonal) IPS liquid crystal display, retina resolution 2048*1536
  • Built-in CMOS color camera, real-time display, support treatment, storage, network and other functions.
  • The system has strong scalability, can choose a variety of accessories according to different needs, such as bright field, dark field, phase contrast, polarization etc..
  • The operating system uses the Andriod 5.0.

If you are interested in 9.7’’PAD uses Windows System, pls choose MAT.041006

MAT.041007 9.7" LCD Pad with Andriod System
Specification of LCD PAD
LCD Screen 9.7" retina LCD
Resolution 2048*1536
Data Storage SD Card Slot, Support Max 32GB C10 High Speed SD Card
Data Interface HDMI,USB 2.0, LAN,WIFI
Operation System Andriod 5.0 , Multi Language
Power Wide Voltage AC 100~240V, DC 12V with External Power Adaptor
WIFI Support
Software YX Camera Installed,
--Can Adjust Real Time Image
--Can Measure Length, Area, Angle, Count
--Can Take Picture, Record Video
YX Image Installed
--Grey, Contrast, Brightness Adjust
--Binary Image For Granular Count
Both Software Chinese/English Version, With Instruction Manual Installed
Product Size Pad 17.5*22.5*2.0cm
Package Size Packing Box 10*24*29cm, 1 pc/Box
Specification of Digital Camera Sensor 1/2.5" Color, Aptina MT9P001 CMOS
5.0M Pixels, 2592*1944
Pixel Size 2.2um*2.2 um
Frame Rate 15 fps@1280*720/,30fps@ 640*480
Shutter Type ERS, Auto
White Balance Auto
Connect Standard C-Mount
