MOC.036004Colposcope, 3X-12X
  • /usr/575/images/Products/Y/57518446.jpg
  • /usr/575/Picture/Y/11435.jpg
  • /usr/575/Picture/Y/11436.jpg
  •

MOC.036004Series Colposcopes are precise optical instruments designed specially for the gynecologic examination and diagnosis. Due to the magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. MOC.036004 Series Colposcopes are featured for sharp image, wide field of view, uniform illumination, adjustable brightness and easy operation. They are the essential instruments for gynecologic examination.

Specification

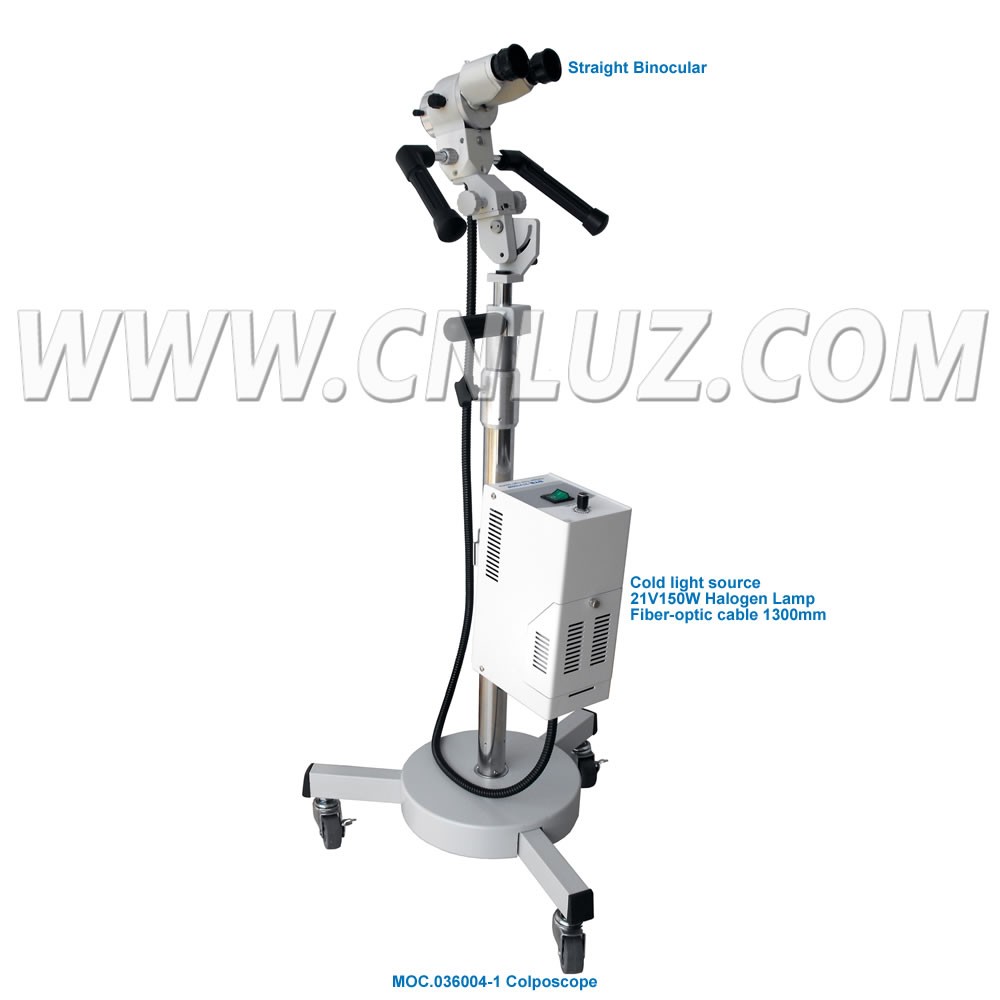

MOC.036004-1

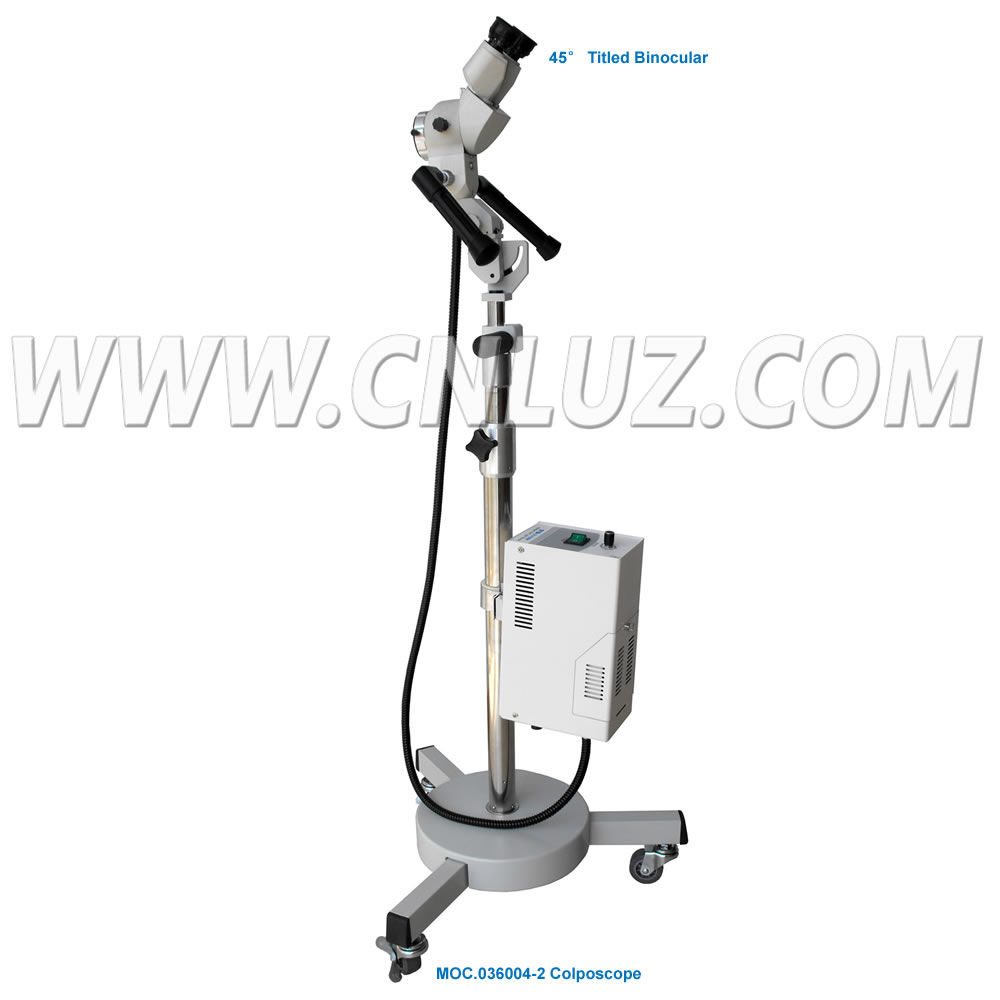

MOC.036004-2

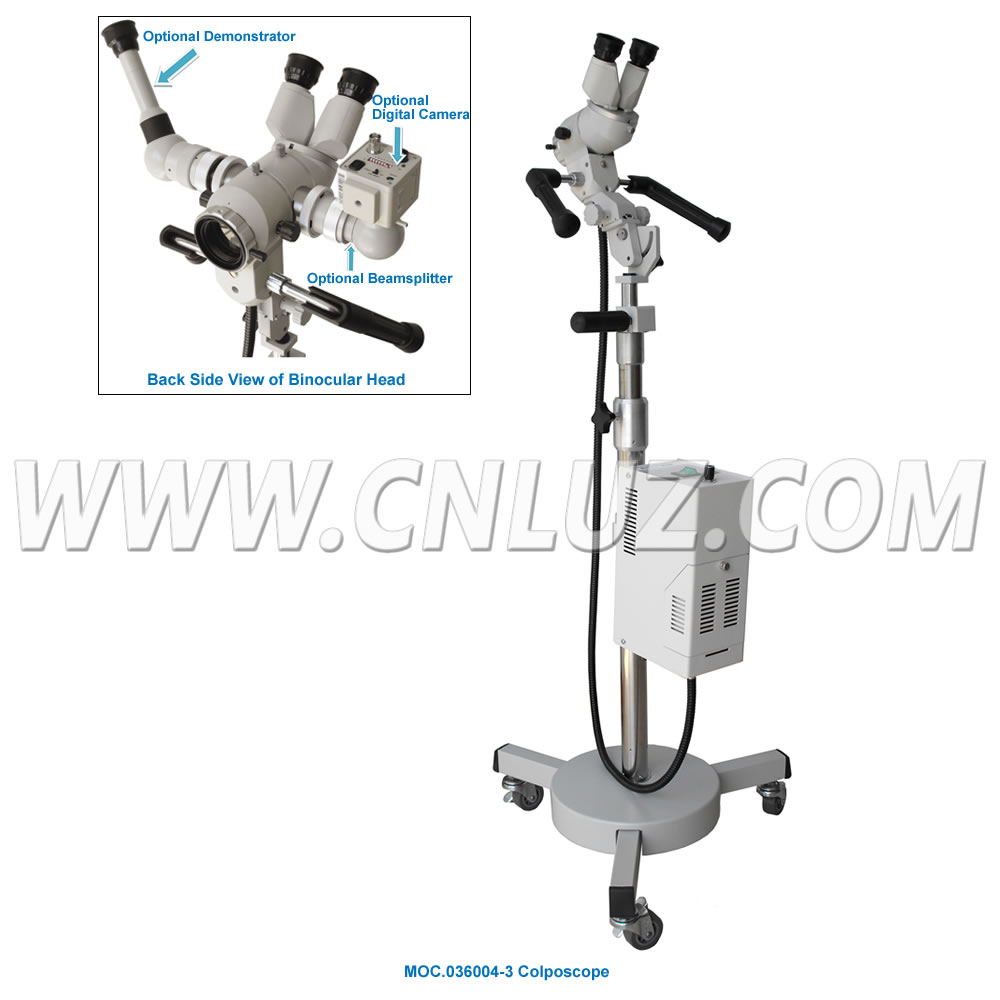

MOC.036004-3
Head Straight Binocular 45°Tilted Binocular 45o tilted(with 45o adapter) Binocular
Eyepiece 6X,Interpupillary Distance: 50mm-80mm;Diopter: ±5D
Focal Length Of Objective F=200mm & 300mm
Magnification Changer 3-step magnification change: 0.6X, 1X, 1.6X
Total Magnification 3X-12X
Linear Field 60.8mm-15.8mm
Fine Focusing Range 20mm
Illumination Coaxial illumination with cold light source fiber-optic cable, 21V150W halogen lamp, brightness adjustable; >15000lux
Fiber-optic cable Length: 1300mm
Stand Column height adjustable fitted on the round base with 3 jaws
Power supply AC100V-240V
Gross Weights 20kg

Item
MOC.036004 Optional Accessory
Objective F=230mm & F=280mm
Beamsplitter MOC.036004-BS
Demonstrator MOC.036004-DS
TV adapter MOC.036004-TA
Photo Adapter MOC.036004-PA
